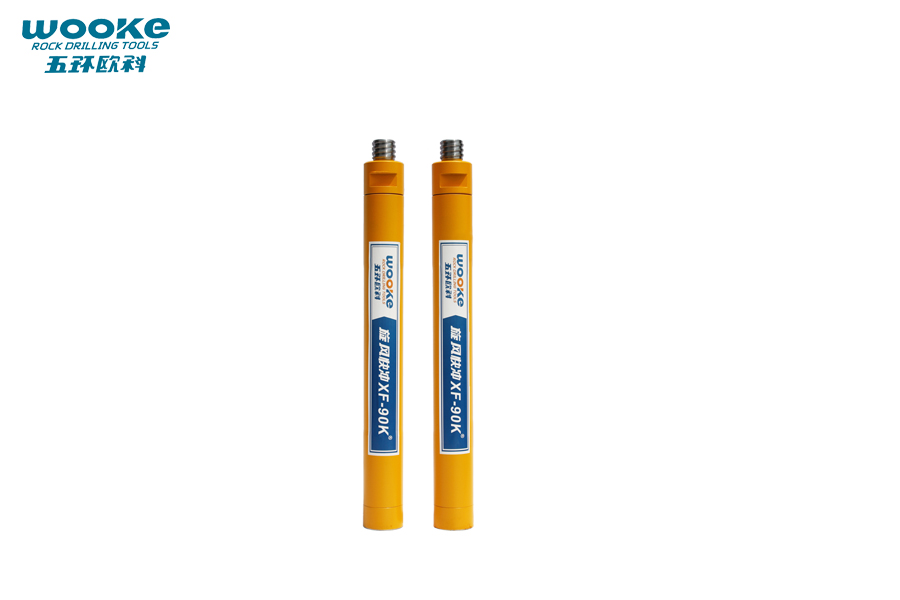

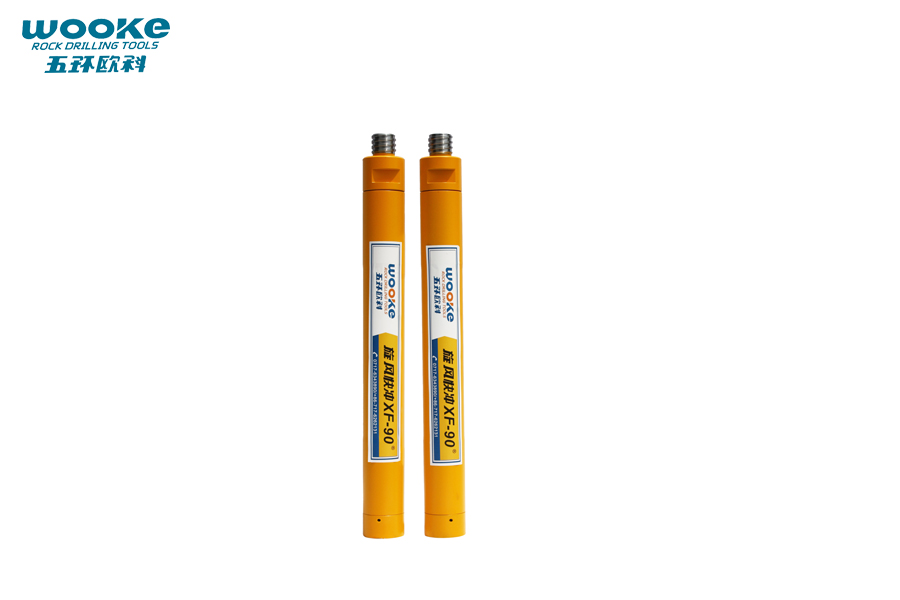

XF90 Low to medium air pressure hammers (CIR90)
- Brand Name: WOOKE
- Model: XF90 DTH Hammer (Pin Lock type & Snap Ring type)
- Matched Bit Shank: CIR90 / XF90K
- Thread Connection: T48x10x2
- Hole Range: 90-110mm
- Outside Diameter: 80mm
- Hammer Effective length: 725mm
- Unit Net Weight: 21kg
- Minimum Order Quantity: 1pc
- Application: Construction site, Quarrying, Tunneling, Foundation Pilling…etc.
XF90 (CIR90) Low to medium air pressure Product Features
XF90(CIR90) Hammers are engineered for enhanced low-to-medium pressure performance, delivering 15% faster impact frequency & higher efficiency vs conventional low-pressure breakers.
Dual models (Snap-Ring/Pin-Type) fit most excavators.
Robust core components ensure fuel savings up to 30% in rock/concrete demolition.
Proven loyalty: 90% of users choose WOOKE CIR90 exclusively after their first purchase.
We are a pure factory of DTH drilling tools with over 30 years of experience in China. The XF90/CIR90 low-to-medium air pressure hammer is one of our most popular small-sized models, with monthly sales of approximately 1,000-1,500 units. To accommodate diverse drilling needs, we offer two types: the Snap-Ring type and the traditional, widely accepted Pin-Lock type. While both deliver identical core functionality, we developed the Snap-Ring type to provide the market with a highly efficient, low-air-pressure solution.

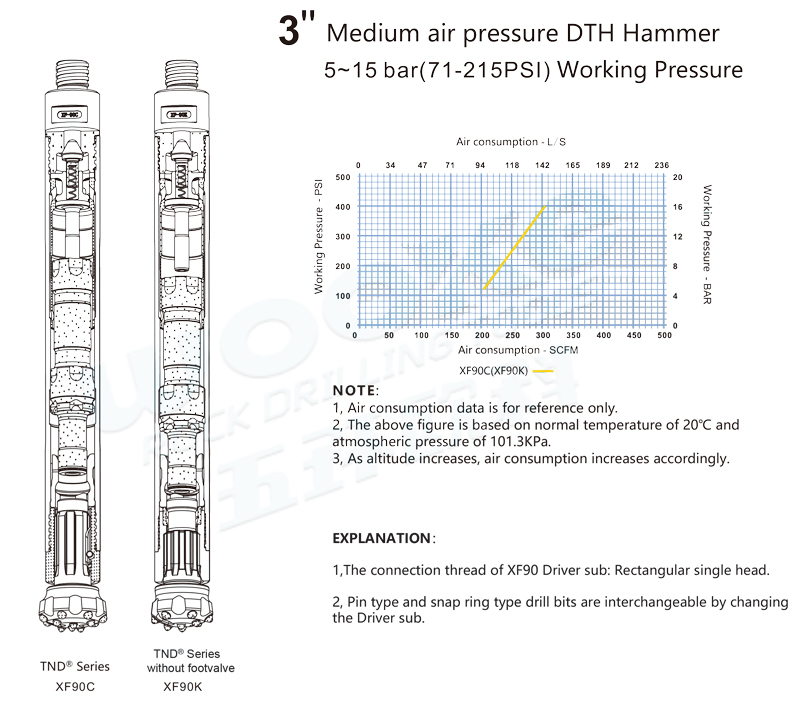

Working Performance of the XF90 (CIR90) Hammers

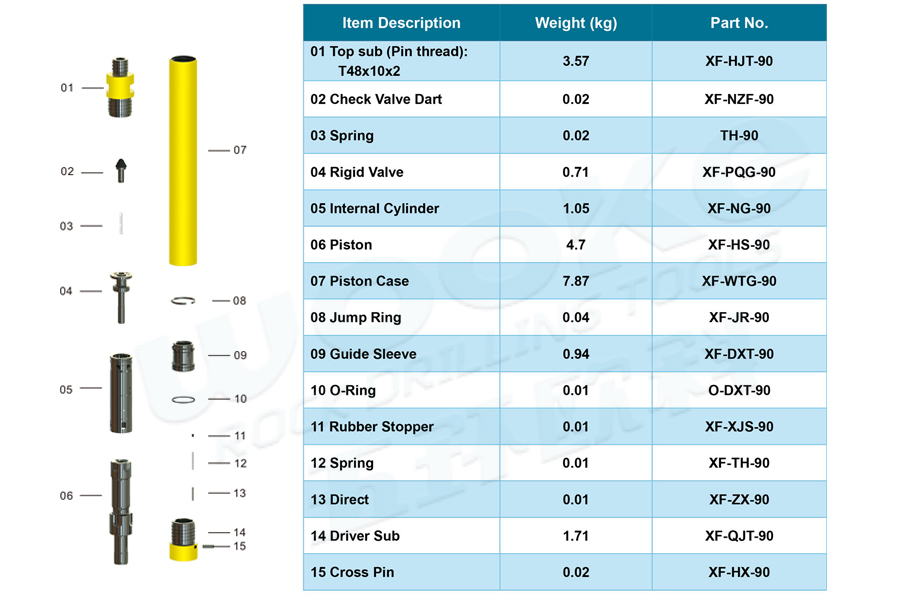

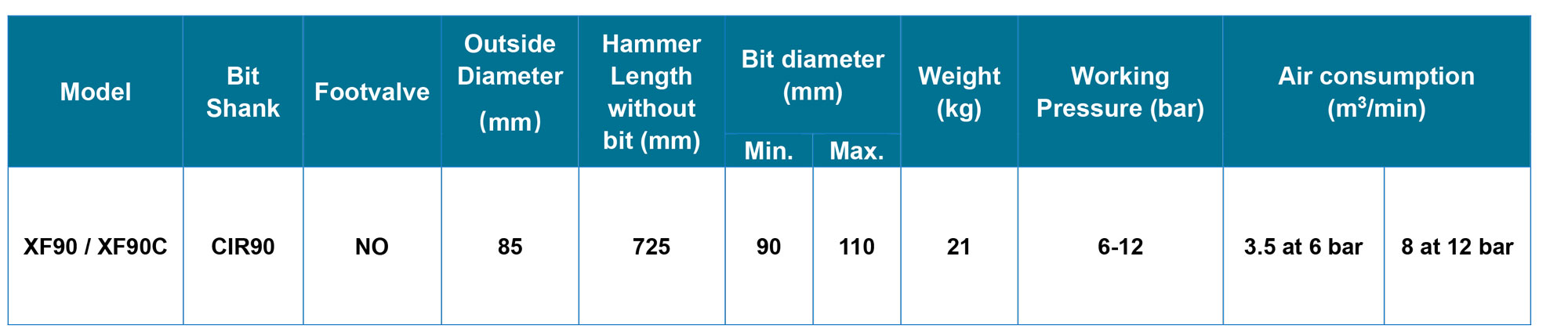

XF90 (CIR90) DTH Hammer Overall Information
