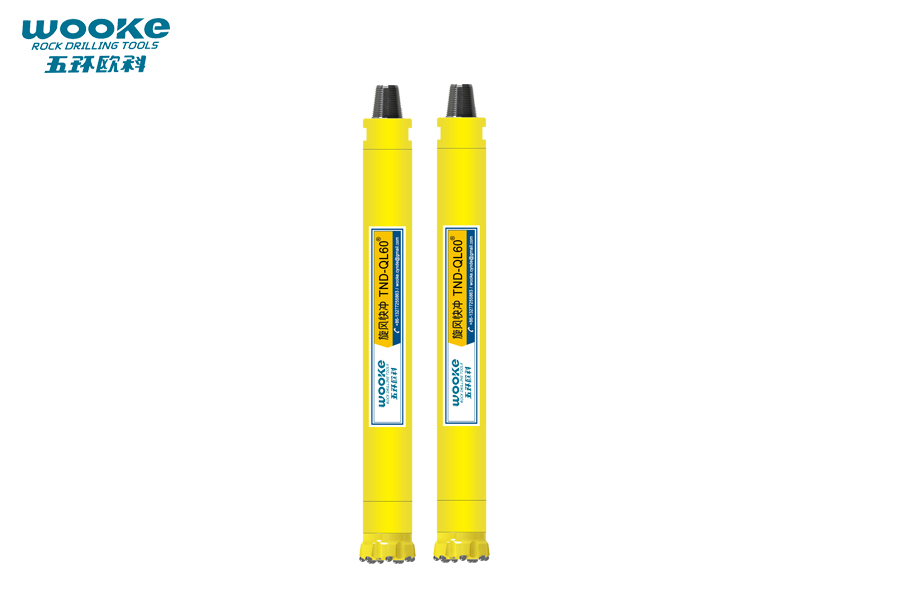

TND-QL60 DTH Hammer

TND-QL60 DTH Hammer Product Features:

The TND-QL60 DTH hammer is a versatile tool designed to deliver consistent results across various drilling applications. Featuring an advanced design, it enhances energy transfer and minimizes air consumption, achieving faster drilling speeds. Its robust construction reduces maintenance requirements, increasing uptime and operational efficiency. Whether for mining, quarrying, or water well drilling, the QL60 Hammer helps clients achieve lower drilling costs and higher output, making it a dependable choice for demanding projects.

• High Impact Power: The QL60 DTH hammer offers superior energy efficiency, enabling rapid penetration in deep and large-diameter holes.

• Resilient Design: TND-QL60 DTH Hammer is built to handle the stress of heavy-duty drilling while maintaining peak performance across extended use.

• Enhanced Versatility: TND-QL60 DTH Hammer is ideal for applications such as mining, water well drilling, and construction projects, offering reliable results.

• Optimized Maintenance: Our TND-QL60 DTH Hammer is designed for easy assembly and servicing, reducing downtime and ensuring seamless operations.

All our TND Series Hammers have the following features:

1. TND® optimized structure design: Fewer air holes on internal cylinder, higher stiffness of air slot.

2. Standard API Thread.

3. Fine CNC machining tolerance and specifications coupled with quality assembly lead to great reliability and performance.

4. The piston case is made of superior alloy steel to provide the longest service life possible.

5. Heat-treated piston and internal cylinder guiding system is reasonably structured to achieve the highest efficiency and the largest impact power. The penetration speed is 10%-30% faster than other products of the same specification.

6. The multiple threads are CNC machined to achieve a higher level of accuracy, allowing ease of breakout and make-up of the Driver sub.

7. The Driver sub is heat-treated to maximize service life and drill bit life.

8. Hammer front structure design: when pulling out the hammer, the last impact of the piston would fall on the step of the piston case, ensuring the safety of the driver sub-splines and the retainer ring.

Top Sub for Customer's Choice:

↑★ Top sub with cement carbide button (Alternative).

↑★ In order to increase the working life of the piston case when drilling very abrasive rocks. The Top sub is designed to be made up of three pieces of coupling,

and only the wear-proof casing needs to be replaced timely.

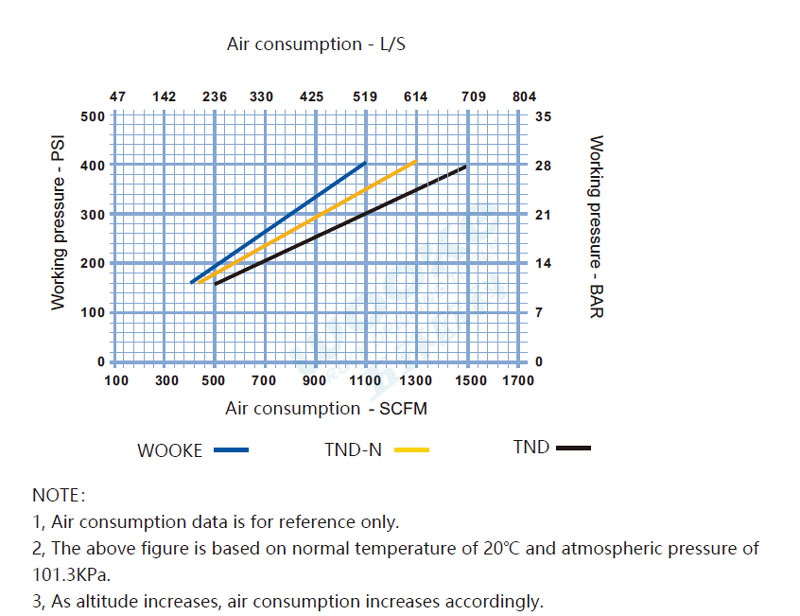

6'' High Air Pressure Working Performance:

10~35 bar (145-507PSI) Working Pressure

Top Sub Pin Thread: 3 1/2'' API REG

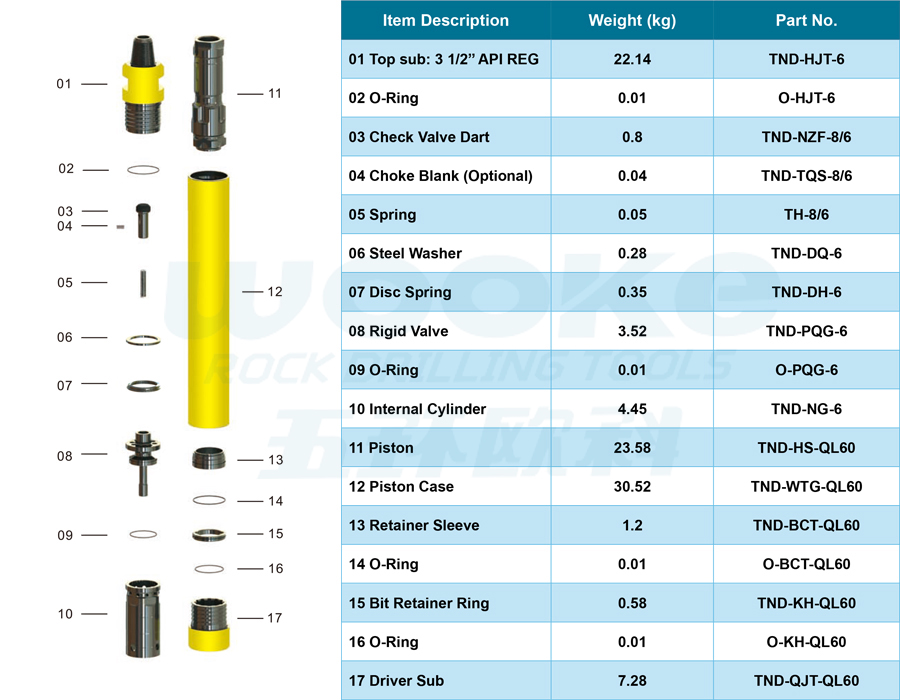

TND-QL60 DTH Hammer Part Details:

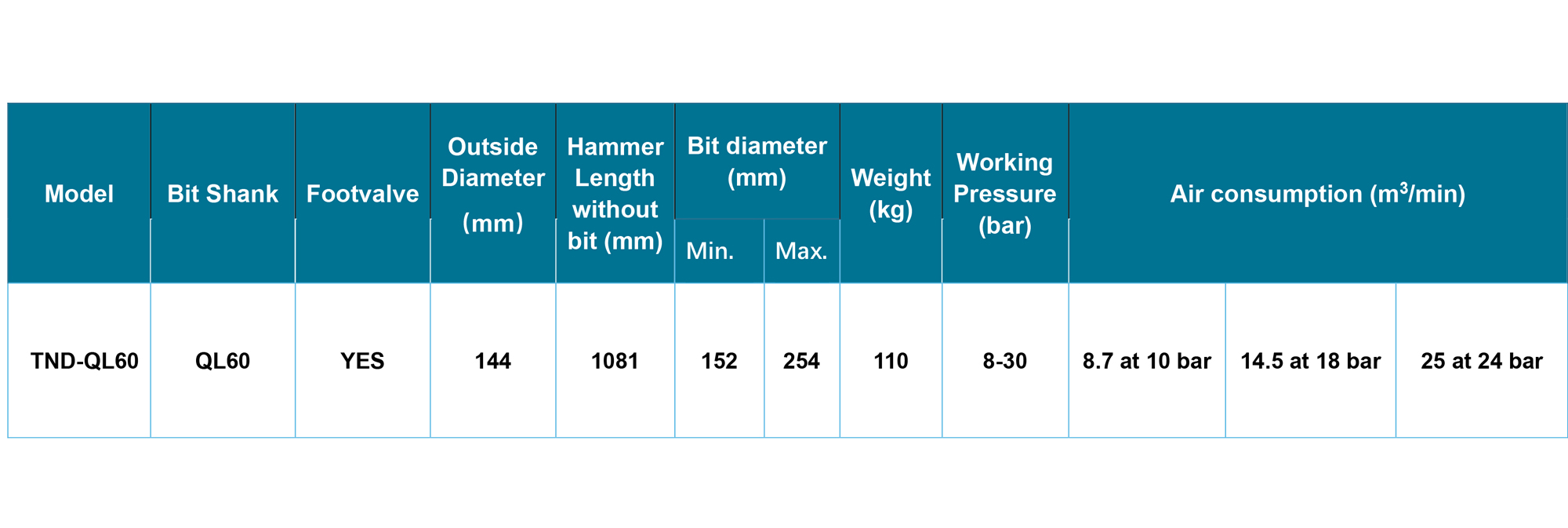

TND-QL60 DTH Hammer Overall Information:
