DTH Bit Face Design Explained — Are You Choosing the Right One?

How to Select the Right DTH Bit

Understanding DTH Bit Face Profiles and Selection

In applications such as mining, tunneling, and infrastructure drilling, the face design of a DTH (Down-the-Hole) drill bit plays a critical role in determining rock-breaking efficiency, hole accuracy, and service life.

Choosing the wrong face profile can lead to slow penetration rates, accelerated wear, bit failure, or even serious issues such as hole deviation and bit jamming—directly impacting project timelines and costs.

In reality, a DTH bit face design is like a custom-engineered solution. Different geological conditions, air pressure levels, and drilling requirements demand specific configurations.

At WOOKE, we help you decode the selection logic behind five mainstream DTH bit face designs, so you can make informed decisions and eliminate guesswork in procurement.

Common DTH Bit Face Types & Applications

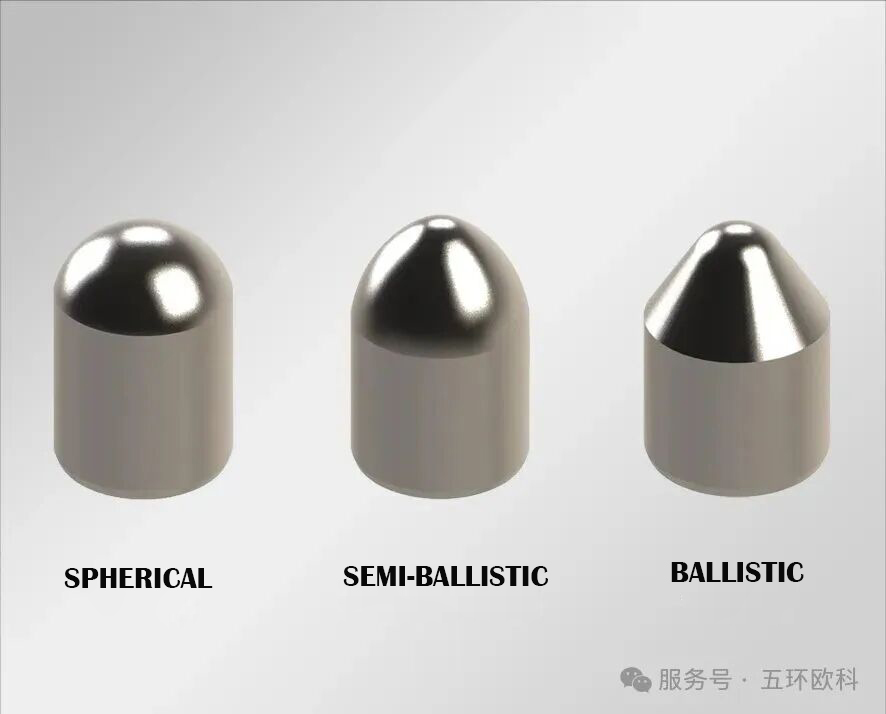

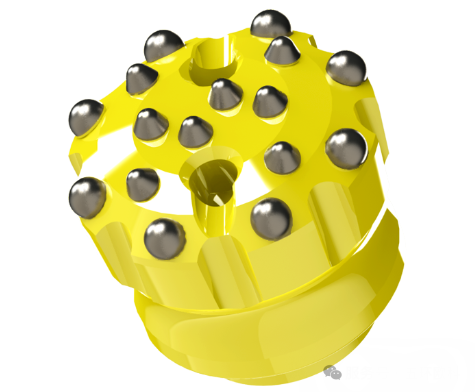

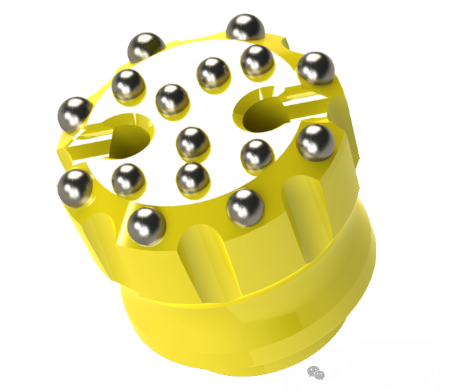

Flat Face (Spherical Buttons)

Suitable for hard rock formations, including highly abrasive conditions.
Provides excellent durability and resistance to wear in demanding environments.

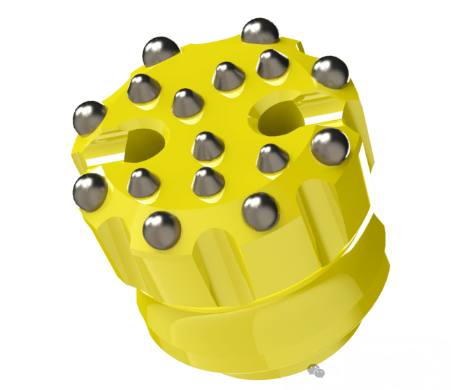

Flat Face (Gauge Spherical + Center Ballistic)

Designed for medium-hard to hard rock formations with moderate abrasiveness.
Balances penetration rate and durability.

Convex Face (Gauge Spherical + Center Buttons)

Ideal for medium-hard formations with moderate abrasion.
Offers improved penetration with stable drilling performance.

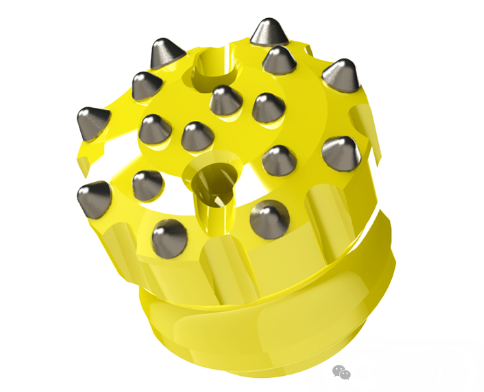

Convex Face (Full Ballistic Buttons)

Best suited for non-abrasive formations requiring high penetration rates.
Maximizes drilling speed under favorable conditions.

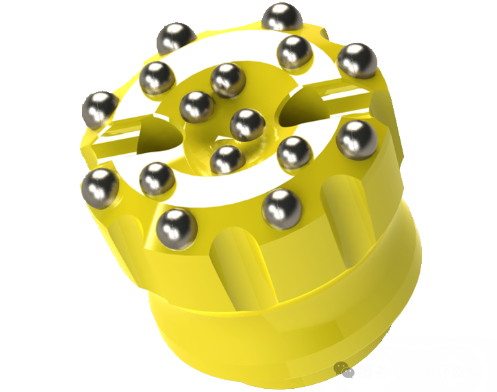

Concave Face (Spherical Buttons)

Recommended for medium-hard rock formations where hole deviation control is critical.
Helps maintain straighter holes with minimal deviation.
