DTH Hammer: The Core Engine of Modern Efficient Drilling

In modern drilling engineering, the DTH Hammer plays an irreplaceable and pivotal role. As the core power unit acting directly at the bottom of the borehole, they significantly enhance drilling efficiency, penetration capability, and operational economics. DTH Hammer is widely applied across numerous sectors, including mining, geological exploration, and foundational engineering (e.g., geothermal wells, water wells).

I. DTH Hammer: Definition and Core Value

A DTH Hammer is a down-the-hole power tool installed between the drill string and the drill bit. Its core function is to convert energy supplied from surface compressors or mud pumps (compressed gas or high-pressure fluid) into high-frequency, high-energy impact power. This energy is transmitted through the drill bit to efficiently fragment rock at the bottom of the hole. Compared to traditional drilling methods relying solely on rig rotary force, DTH Hammer utilizes a combined "percussion-rotation" fragmentation mechanism, dramatically improving penetration rates and borehole quality in hard, fractured, or abrasive formations.

II. Working Principle: The Art of Energy Transfer

The working principle of a DTH Hammer can be summarized as: Energy Conversion → Impact Transmission → Rock Fragmentation.

Energy Conversion: High-pressure compressed air drives the internal piston within the hammer to perform high-speed reciprocating motion.

Impact Transmission: The piston converts kinetic energy into intense shock waves, striking the shank end of the drill bit directly at extremely high frequencies (typically reaching thousands of impacts per minute).

Rock Fragmentation: The impact energy is transmitted through the bit to the rock at the bottom of the hole, creating localized areas of immense stress concentration. This causes the rock to undergo instantaneous brittle fracture (crushing and shearing). Simultaneously, the continuous rotational force provided by the drill string moves the bit's cutting structure, clearing away broken cuttings and engaging fresh rock surfaces, enabling an efficient and continuous drilling process.

III. Key Advantages: Synonymous with Efficiency and Reliability

DTH Hammer technology brings revolutionary improvements to drilling operations:

Exceptional Drilling Efficiency: Significantly outperforms pure rotary drilling, especially in hard rock formations, shortening project timelines and reducing overall costs. Its percussive fragmentation mechanism delivers superior rock engagement ("bite").

Superior Penetration Capability: Powerful impact forces effectively overcome the challenges posed by hard, dense, or abrasive formations, broadening the range of drillable ground conditions.

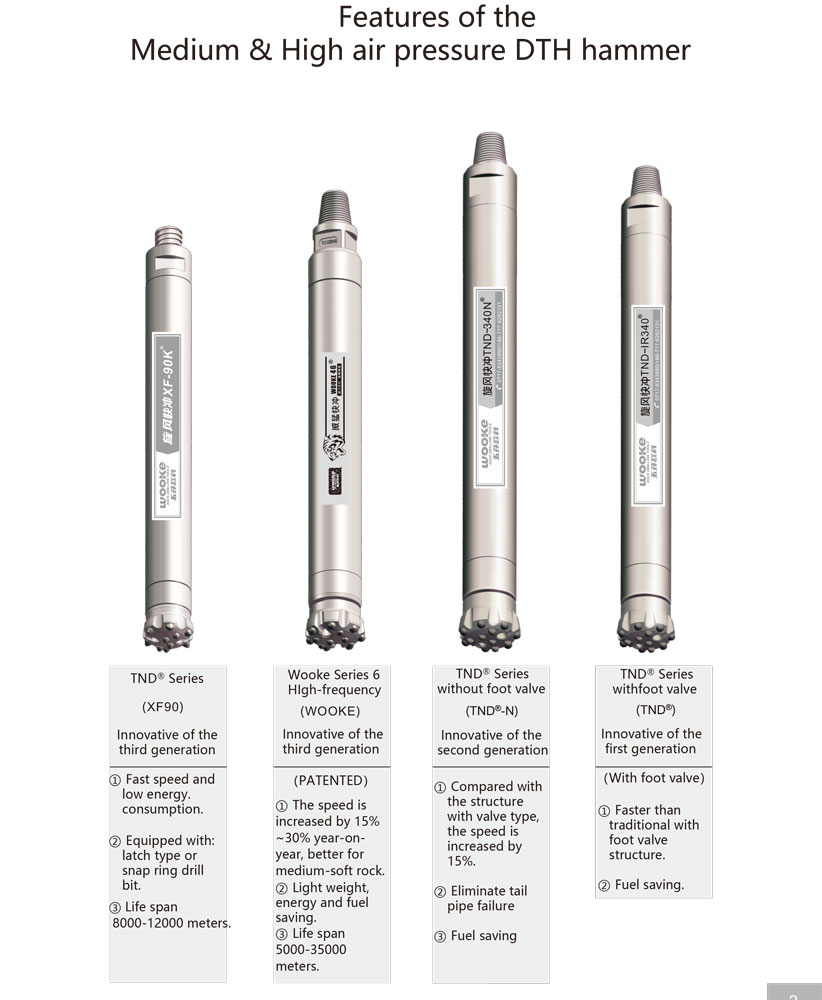

Broad Adaptability: Maintains stable, high performance across diverse formations, from relatively soft overburden to extremely hard bedrock (e.g., granite, quartzite). For instance, WOOKE "Short-Barreled Mighty Fast-Impact DTH Hammer" series (WOOKE Shank Series DTH Hammer), with its optimized structural design and material processing, demonstrates exceptional adaptability and reliability in various complex formations.

Reduced Equipment Load: Impact forces are generated within the hammer itself and applied directly down the hole. This substantially reduces the burden on the rig's rotary system, minimizes wear and fatigue on the drill string, and extends the overall service life of drilling equipment.

Improved Borehole Quality: The percussive action contributes to the formation of rounder, more stable borehole walls and helps reduce deviation.

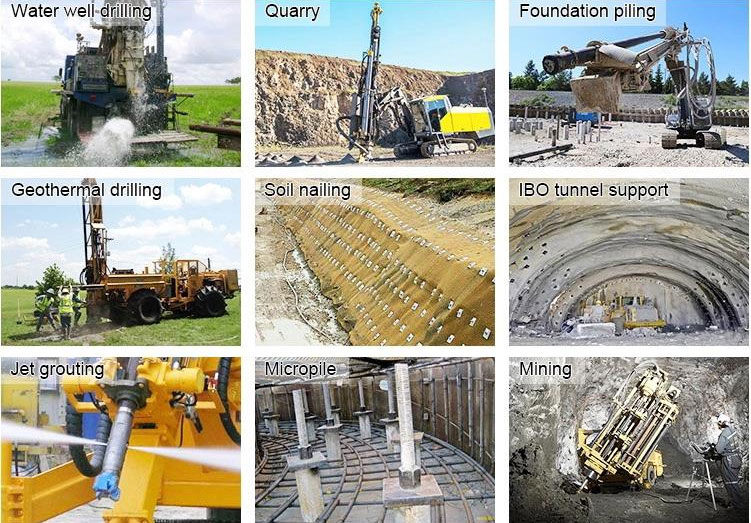

IV. Core Application Areas

DTH Hammer is an indispensable tool in modern drilling:

Mineral Exploration & Mining: Drilling blast holes, anchor holes, ventilation shafts, dewatering holes; serving as core equipment in metal ore and coal mining.

Geological & Geotechnical Surveys: Conducting hydrogeological and engineering geological investigations.

Foundation Engineering: Constructing ground source heat pump (GSHP) wells, water wells, micropiles, and slope stabilization anchor holes.

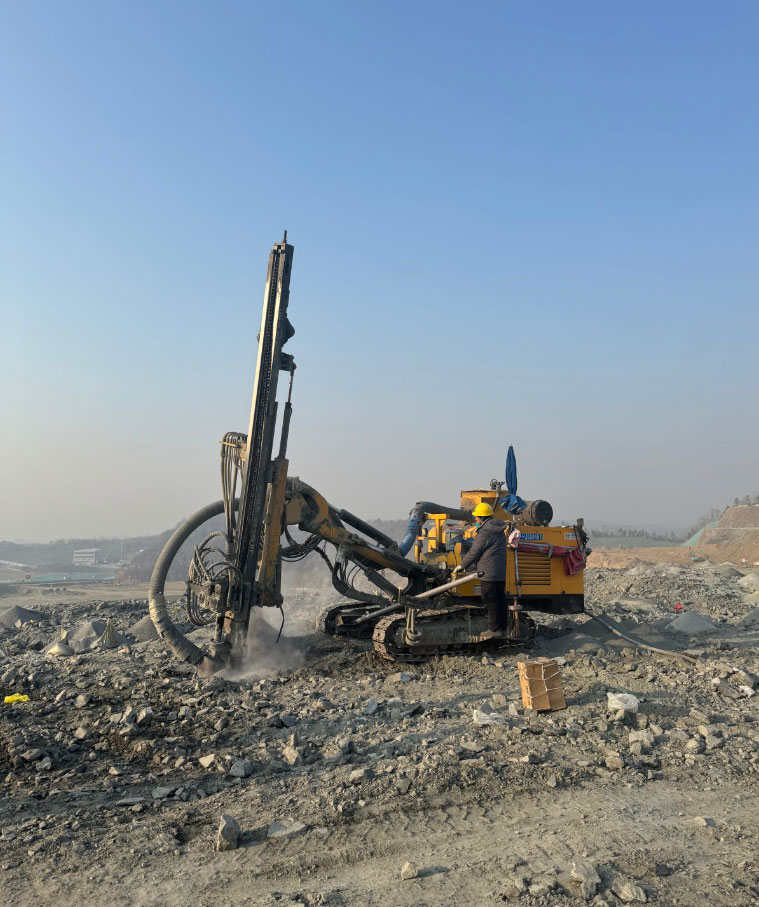

Quarrying & Construction: Dimension stone quarrying and rock excavation for foundation blasting operations.

V. Maintenance & Care: Key to Sustained Performance and Longevity

To ensure DTH Hammer continuously performs at its best and achieves an extended service life, standardized maintenance and care are crucial:

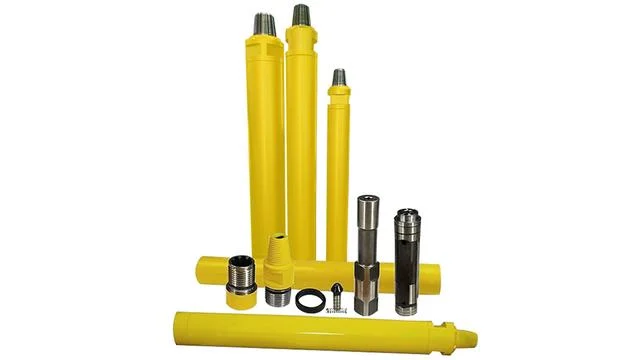

Regular Inspections: Strictly adhere to an inspection schedule every 100 operating hours. Check the wear condition of key moving components such as the Piston, Piston case, Rigid valve, Drill Bit, and Bit Retainer Ring.

Timely Replacement: Immediately replace any components found to be excessively worn or damaged (especially Seal Kits and Consumables) with our hammer parts. Neglecting minor issues can lead to major failures.

Proper Lubrication: Ensure the use of the specified lubricant type and correct quantity. Fill lubricant (ISO VG20 Machinery Oil in summer, ISO VG5-10 Machinery Oil in winter) before each shift to minimize internal friction and wear.

Cleaning & Storage: Thoroughly clean the DTH hammer's exterior and internal flow passages after operation to prevent sediment accumulation. For long-term storage, place the DTH hammer in a dry environment and implement rust prevention measures.

Standardized Operation: Strictly follow operating procedures; avoid dry firing (operating without rock contact) and prolonged pressure surges.

VI. Future Development Trends: Intelligence & High Performance

DTH Hammer technology is continuously evolving towards higher efficiency, greater reliability, and increased intelligence:

Material & Process Innovation: Adoption of more wear-resistant, impact-resistant alloy materials and advanced heat treatment processes to extend the lifespan of core components.

Optimized Structural Design: Continuous improvements in internal flow path design and energy transfer efficiency to enhance single-impact energy and frequency. WOOKE'S "Short-Barreled Mighty Fast-Impact Hammer" series (WOOKE Shank Series) exemplifies the trend towards structural compactness and performance enhancement.

Intelligent Monitoring: Integration of sensors (e.g., vibration, temperature, pressure) combined with technology enables real-time monitoring of DTH hammer operating status and fault prediction. This facilitates predictive maintenance, maximizing equipment utilization and operational safety.

Customization & Specialization: Development of more targeted DTH hammer models tailored to specific application scenarios such as ultra-deep holes, large diameters, or directional drilling.

Conclusion: The Core Force Driving Efficient Drilling

The DTH Hammer is the cornerstone of technical equipment, enabling efficient, economical, and reliable operations in modern drilling engineering. By efficiently converting fluid energy into rock-breaking force, it overcomes the limitations of traditional methods and vastly expands drilling capabilities. Selecting high-performance, stable, and reliable DTH Hammer and implementing scientific maintenance practices are key to enhancing project benefits. As a representative of industry innovation, WOOKE ROCK DRILLING TOOLS CO., LTD. remains dedicated to the R&D and application of DTH Hammer technology. Its flagship product, the "Short-Barreled Mighty Fast-Impact Hammer" (WOOKE shank Series), exemplifies efficiency, reliability, and adaptability, continuously leading the trends in drilling technology development and providing robust power for global resource development and engineering construction.
