Product Overview: TND XF-90 Medium Air Pressure DTH Hammer (Operating Pressure: 5-15 bar)

XF-90 Series
The XF-90 TND medium air pressure DTH hammer is one of our company’s original and exceptional products. Compact yet powerful, it delivers outstanding cost-effectiveness and excellent performance across various working conditions, making it a customer favorite. Let’s dive deeper into this popular masterpiece!

Product Variants – Pin-Type

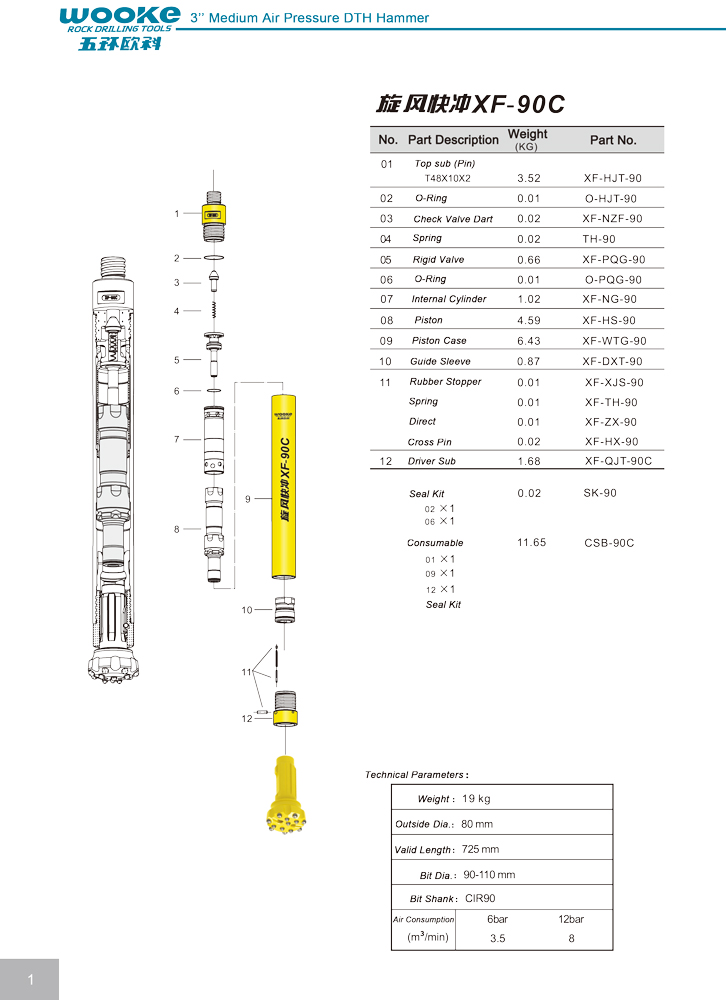

Medium Air Pressure DTH Bit (90C Pin-Type)

• Spline Count: 6 splines

• Bit Diameter: 90 mm, 100 mm, 110 mm

• Operating Pressure: 5-15 bar

• Features:

• High stability and excellent pressure retention (capable of fast and stable drilling throughout the process at air pressures below 15 kg/cm²).

• Low cost, high efficiency.

• Widely applied in mining, engineering, hydropower, water wells, and more.

Product Variants – Snap Ring-Type

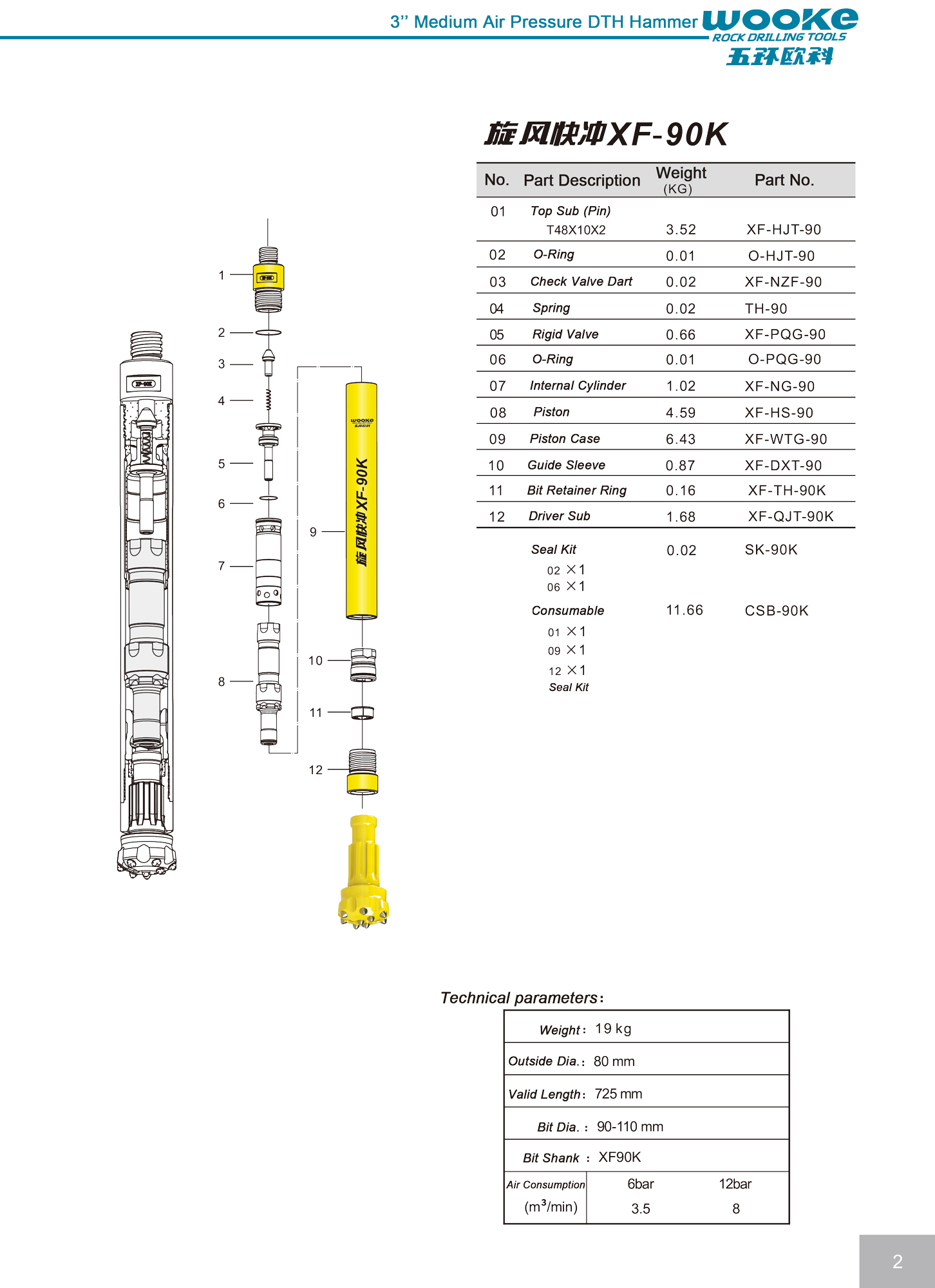

Medium Air Pressure DTH Bit (90K Snap Ring-Type)

• Spline Count: 8 splines

• Bit Diameter: 90 mm, 95 mm, 100 mm, 110 mm

• Operating Pressure: 5-15 bar

• Features:

• Retains all the advantages of the XF-90C.

• Snap ring design ensures the bit is less likely to detach during operation.

Product Maintenance Tips:

1. Routine Inspection and Cleaning

• Periodically disassemble and clean the hammer after use. Use specialized tools to lightly tap during disassembly to avoid deformation of internal parts.

• Avoid forceful hammering, welding, or heating methods, as these can render the hammer unusable.

• Recommended tools include chain wrenches, small disassembly spanners, and tools that allow precise and gentle vibrations.

2. Internal Component Cleaning and Lubrication

• Use a cleaning agent to clean all internal parts thoroughly. Blow them dry with high-pressure air, apply an even coat of machine oil, and reassemble.

3. Part Inspection and Replacement

• Replace parts immediately if cracks, scoring, or damage occur, or if the splines on the front connector are worn by more than 60%.

4. Wear Measurement and Component Replacement

• If performance declines due to wear on the outer casing or internal components, use professional measuring tools to determine whether repairs or replacements are required.

Let the XF-90 Whirlwind hammer empower your projects with reliability, efficiency, and unmatched performance!
