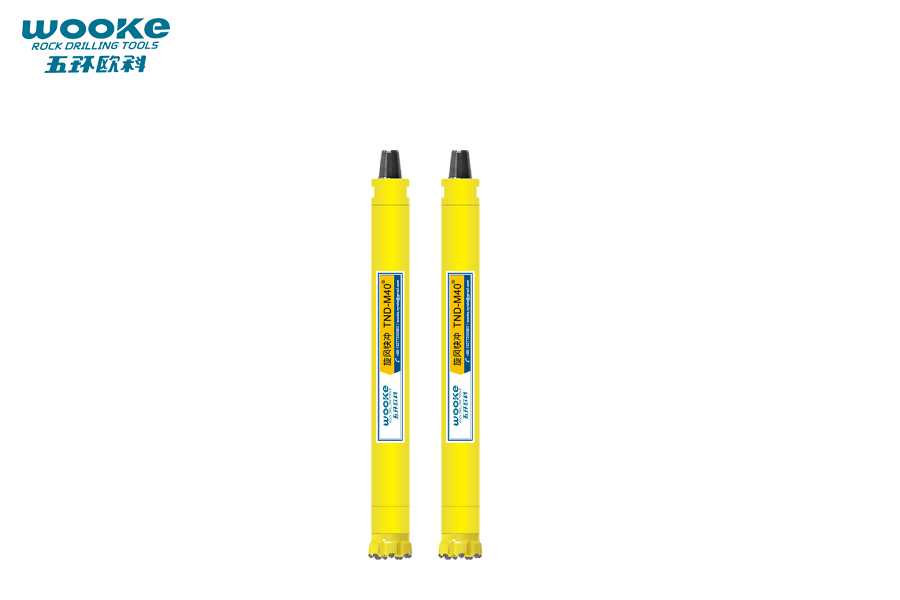

TND-M40 DTH Hammer

TND-M40 DTH Hammer Product Features:

The TND-M40 DTH hammer is mainly exported to the Brazilian market. Its superior durability and efficient drilling performance make it a preferred choice for water well drilling or blast hole drilling. Everyone wants a high penetration hammer with a very long service life and also easy maintenance. Here at WOOK, our TND-M40 DTH hammer is your best choice.

Versatile Performance: The TND-M40 DTH hammer is designed for various rock drilling tasks, ensuring adaptability across different projects.

Exceptional Durability: The TND-M40 DTH Hammer is engineered for long-term use; the inner structure of the hammer part is quite simple, which reduces the frequency of replacements and repairs.

Efficient Drilling: WOOKE M40 DTH Hammer offers high drilling efficiency, improving overall productivity and project completion times.

Reliability: Choose WOOKE is to choose for assurance. TND-M40 DTH hammer ensures dependable performance even in challenging conditions, providing peace of mind to operators.

All our TND Series Hammers have the following features:

TND® optimized structure design: Fewer air holes on internal cylinder, higher stiffness of air slot.

Standard API Thread.

Fine CNC machining tolerance and specifications coupled with quality assembly lead to great reliability and performance.

The piston case is made of superior alloy steel to provide the longest service life possible.

Heat-treated piston and internal cylinder guiding system is reasonably structured to achieve the highest efficiency and the largest impact power. The penetration speed is 10%-30% faster than other products of the same specification.

The multiple threads are CNC machined to achieve a higher level of accuracy, allowing ease of breakout and make-up of the Driver sub.

The Driver sub is heat-treated to maximize service life and maximize drill bit life.

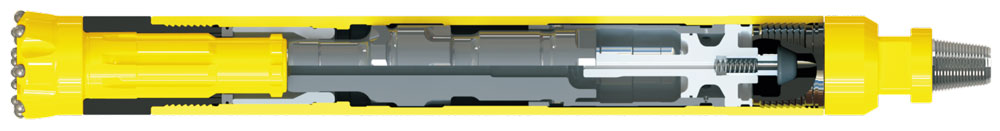

Hammer front structure design: when pulling out the hammer, the last impact of the piston would fall on the step of the piston case, ensuring the safety of the driver sub-splines and the retainer ring.

Top Sub for Customer's Choice:

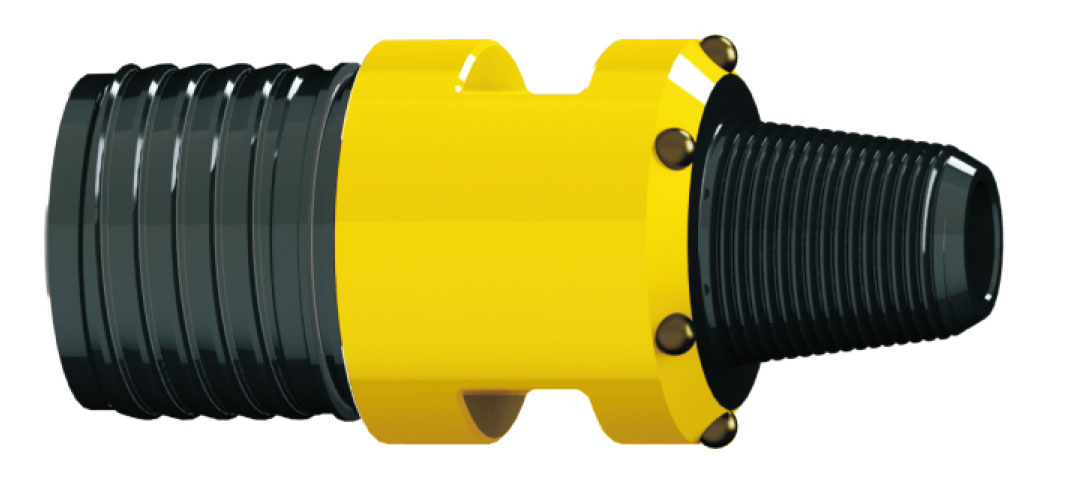

↑★ Top sub with cement carbide button (Alternative).

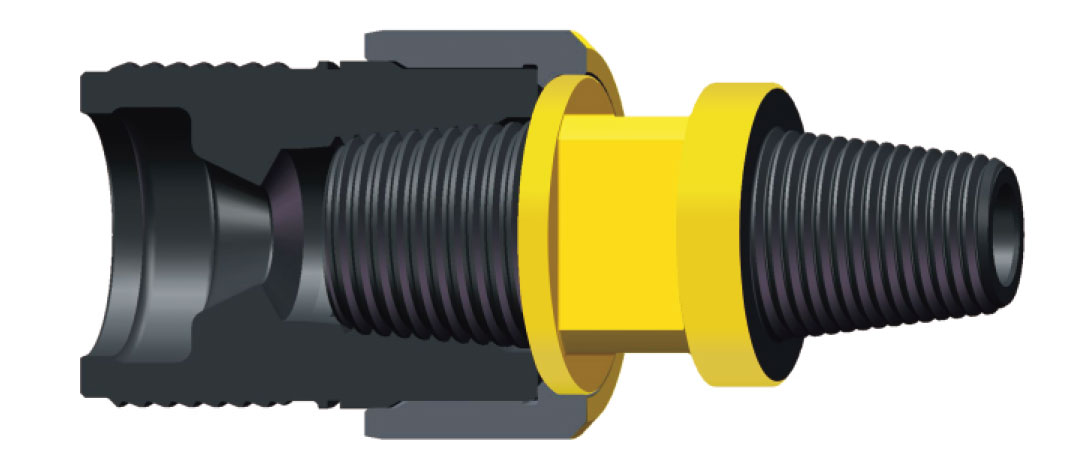

↑★ In order to increase the working life of the piston case when drilling very abrasive rocks. The Top sub is designed to be made up of three pieces of coupling, and only the wear-proof casing needs to be replaced timely.

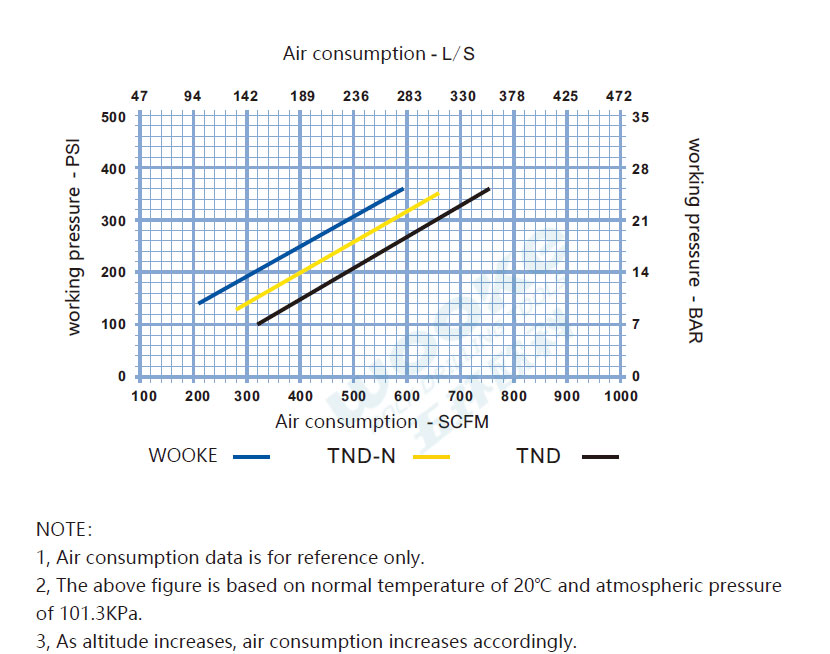

4'' High Air Pressure DTH Hammer Working Performance:

10~25 bar (145-362 PSI) Working Pressure.

Top Sub Pin Thread: 2 3/8'' API REG

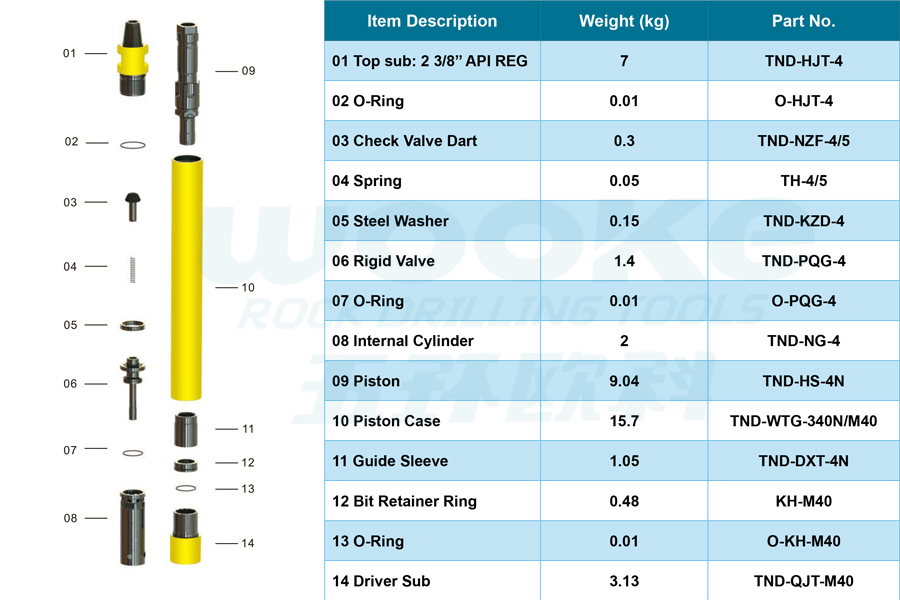

TND-M40 DTH Hammer Part Details:

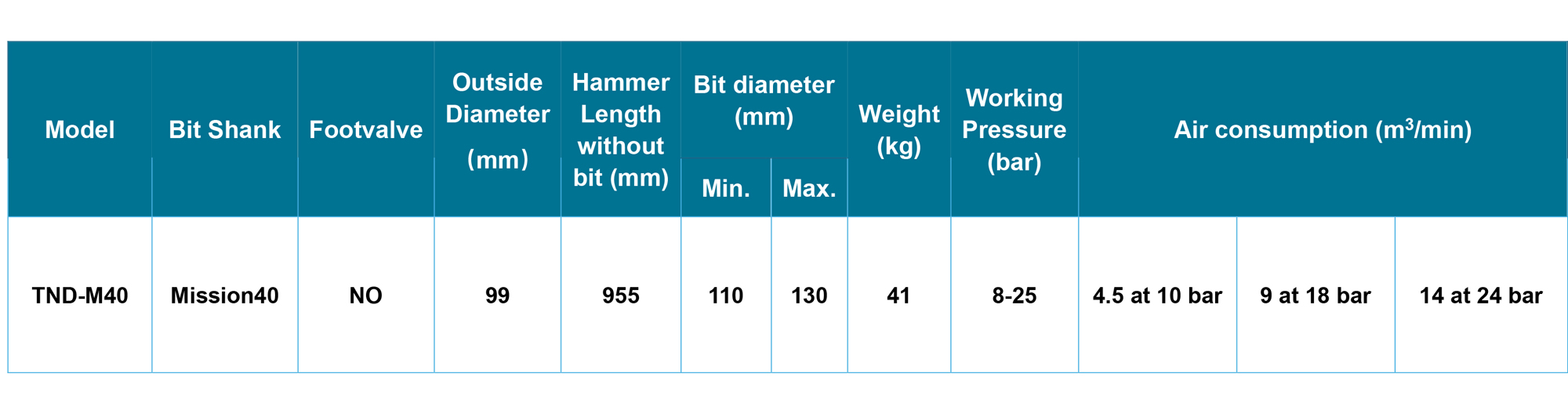

TND-M40 DTH Hammer Overall Information:
