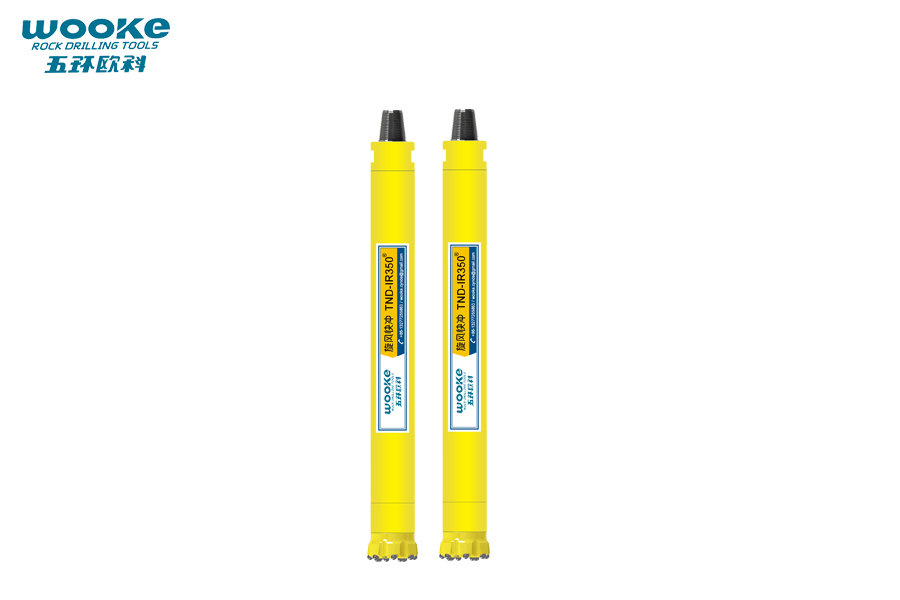

TND-IR350 DTH Hammer
- Model: TND-IR350
- Matched Bit Shank: DHD350
- Thread Connection: API 2 3/8’’ REG OR API 3 1/2’’ REG
- Hole Range: 127-152mm
- Application: Mining site, Construction, Blasthole drilling, Water well drilling, Geothermal drilling…etc.
TND-IR350 DTH Hammer Product Features:
The TND-IR350 hammer is built to withstand demanding drilling conditions, providing superior performance in medium to hard rock formations. Its optimized design ensures maximum energy transfer from the drill rig to the drill bit, enhancing drilling speed and efficiency. This hammer is ideal for high-pressure air systems, delivering consistent power with reduced air consumption. With easy maintenance and robust durability, the TND-IR350 DTH Hammer ensures long-term reliability, maximizing productivity and minimizing downtime. For clients, the TND-IR350 DTH Hammer results in reduced operational costs and higher drilling output.
All our TND Series Hammers have the following features:
TND® optimized structure design: Fewer air holes on internal cylinder, higher stiffness of air slot.
Standard API Thread.
Fine CNC machining tolerance and specifications coupled with quality assembly lead to great reliability and performance.
The piston case is made of superior alloy steel to provide the longest service life possible.
Heat-treated piston and internal cylinder guiding system is reasonably structured to achieve the highest efficiency and the largest impact power. The penetration speed is 10%-30% faster than other products of the same specification.
The multiple threads are CNC machined to achieve a higher level of accuracy, allowing ease of breakout and make-up of the Driver sub.
The Driver sub is heat-treated to maximize service life and maximize drill bit life.
Hammer front structure design: when pulling out the hammer, the last impact of the piston would fall on the step of the piston case, ensuring the safety of the driver sub-splines and the retainer ring.
Top Sub for Customer's Choice:
↑★ Top sub with cement carbide button (Alternative).
↑★ In order to increase the working life of the piston case when drilling very abrasive rocks. The Top sub is designed to be made up of three pieces of coupling,
and only the wear-proof casing needs to be replaced timely.

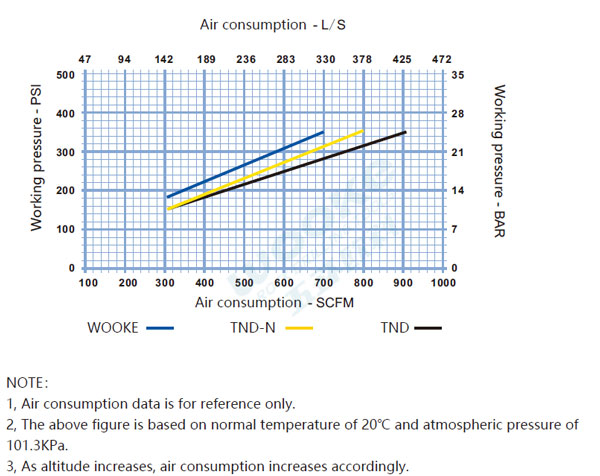

4.5''-5'' High Air Pressure DTH Hammer Performance:
10~30 bar (145-428 PSI) Working Pressure.
Top Sub Pin Thread: 2 3/8'' API REG & 3 1/2'' API REG

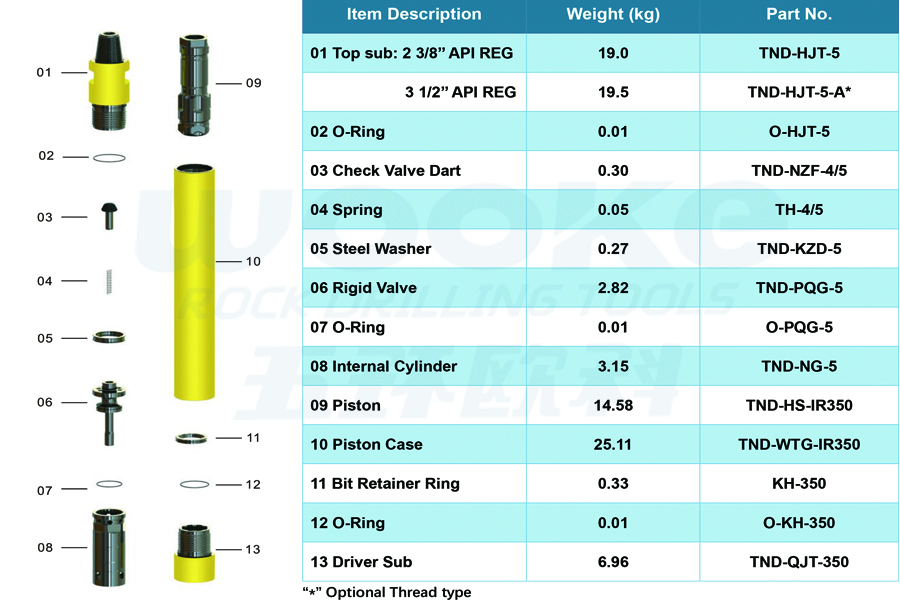

TND-IR350 DTH Hammer Part Details:

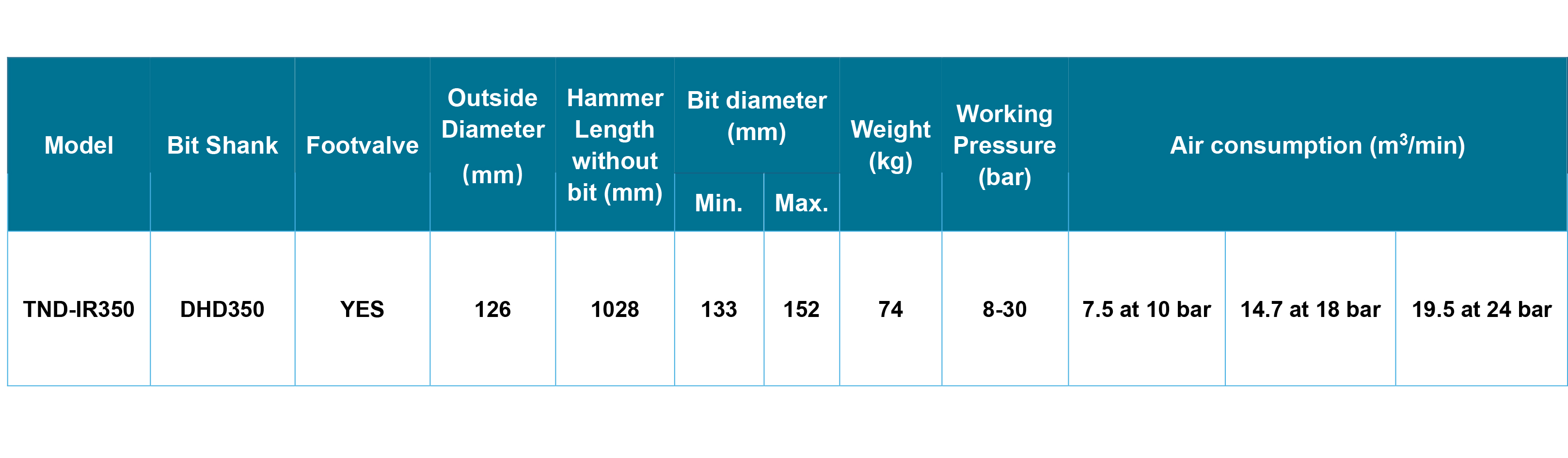

TND-IR350 DTH Hammer Overall Information:
