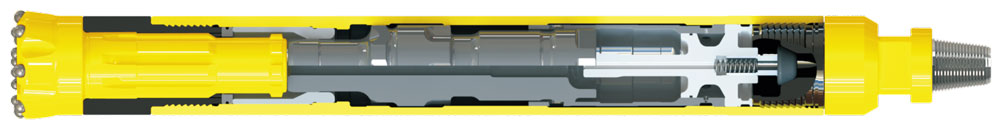

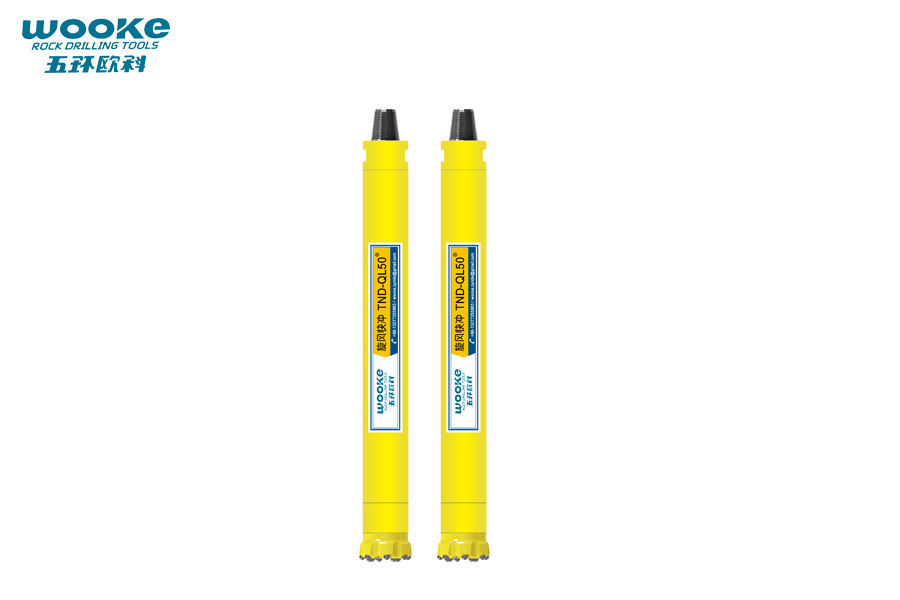

TND-QL50 DTH Hammer

TND-QL50 DTH Hammer Product Features:

Our TND-QL50 DTH hammer is designed for high performance in tough and abrasive conditions. TND-QL50 DTH hammer offers a long-lasting solution for challenging drilling applications. We have sold a lot to the South African market and received very good feedback and repeat orders annually. The highlight of the TND-QL50 DTH hammer is that efficient energy transfer improves drilling speed and minimizes fuel consumption. The TND-QL50 DTH hammer is an excellent choice for industries such as mining, geothermal drilling, and quarrying. The hammer's reliability ensures higher uptime and reduced operational costs for customers.

• Premium Performance: WOOKE's TND-QL50 DTH hammer is crafted with state-of-the-art technology, ensuring superior efficiency and consistent performance, even in the most challenging drilling operations.

• Competitive Factory Pricing: We are a factory located in the same city as the Three Gorges Dam. Take advantage of factory-direct pricing that offers exceptional value, reducing your operational costs without sacrificing quality.

• Unmatched Durability: We are guided by the actual needs of on-site customers, so the design of the TND-QL50 DTH hammer delivers reliable performance in mining and blasting holes, making it ideal for high-intensity tasks.

• Extensive Applications: Our TND-QL50 DTH hammer is highly powerful, perfectly suited for mining operations, quarrying, and creating blasting holes with precision and speed.

• Customizable Options: In order to meet customers' diverse project requirements, WOOKE provides tailored configurations for the TND-QL50 DTH hammer, such as a larger diameter of piston case to ensure it is more durable for your specific drilling needs.

All our TND Series Hammers have the following features:

1. TND® optimized structure design: Fewer air holes on internal cylinder, higher stiffness of air slot.

2. Standard API Thread.

3. Fine CNC machining tolerance and specifications coupled with quality assembly lead to great reliability and performance.

4. The piston case is made of superior alloy steel to provide the longest service life possible.

5. Heat-treated piston and internal cylinder guiding system is reasonably structured to achieve the highest efficiency and the largest impact power. The penetration speed is 10%-30% faster than other products of the same specification.

6. The multiple threads are CNC machined to achieve a higher level of accuracy, allowing ease of breakout and make-up of the Driver sub.

7. The Driver sub is heat-treated to maximize service life and maximize drill bit life.

8. Hammer front structure design: when pulling out the hammer, the last impact of the piston would fall on the step of the piston case, ensuring the safety of the driver sub-splines and the retainer ring.

Top Sub for Customer's Choice:

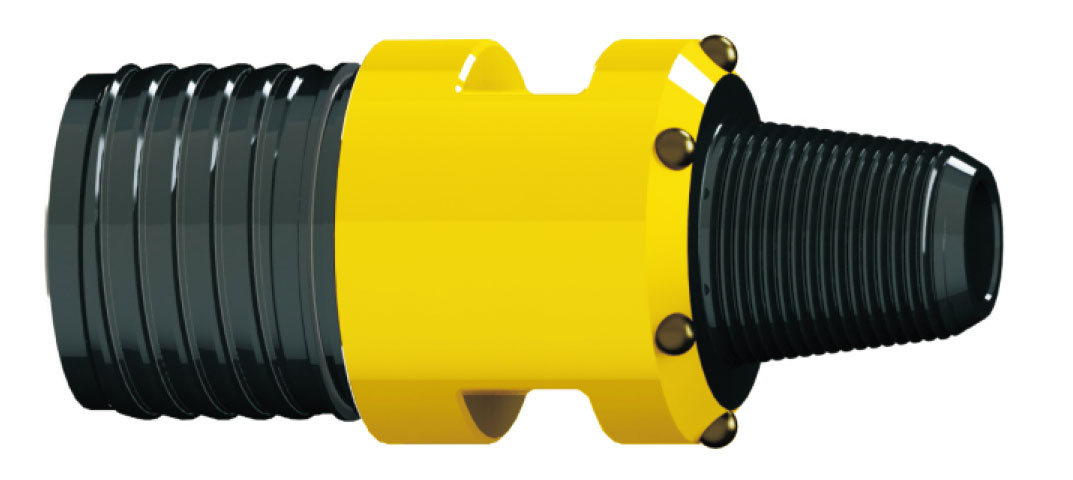

↑★ Top sub with cement carbide button (Alternative).

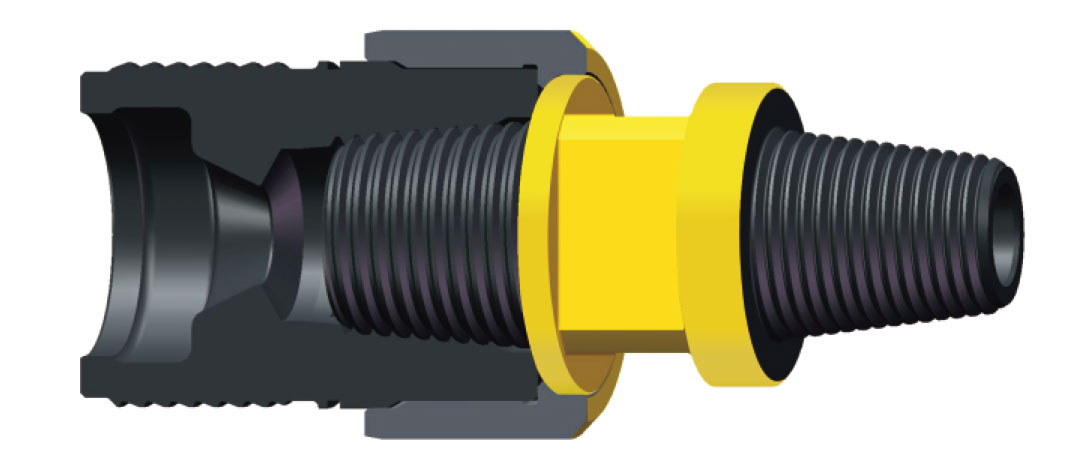

↑★ In order to increase the working life of the piston case when drilling very abrasive rocks. The Top sub is designed to be made up of three pieces of coupling,

and only the wear-proof casing needs to be replaced timely.

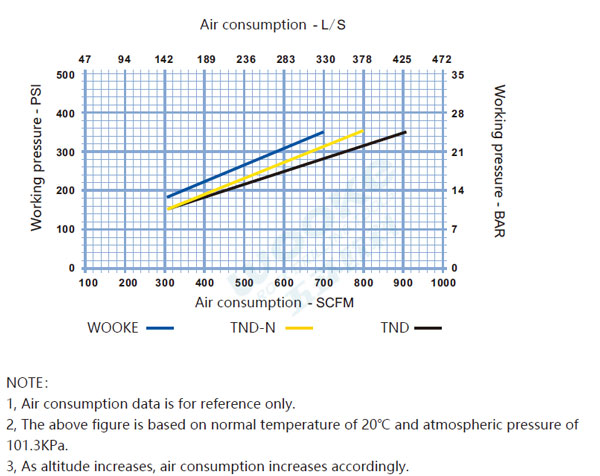

4.5''-5'' High Air Pressure DTH Hammer Working Performance:

10~30 bar (145-428 PSI) Working Pressure.

Top Sub Pin Thread: 2 3/8'' API REG & 3 1/2'' API REG

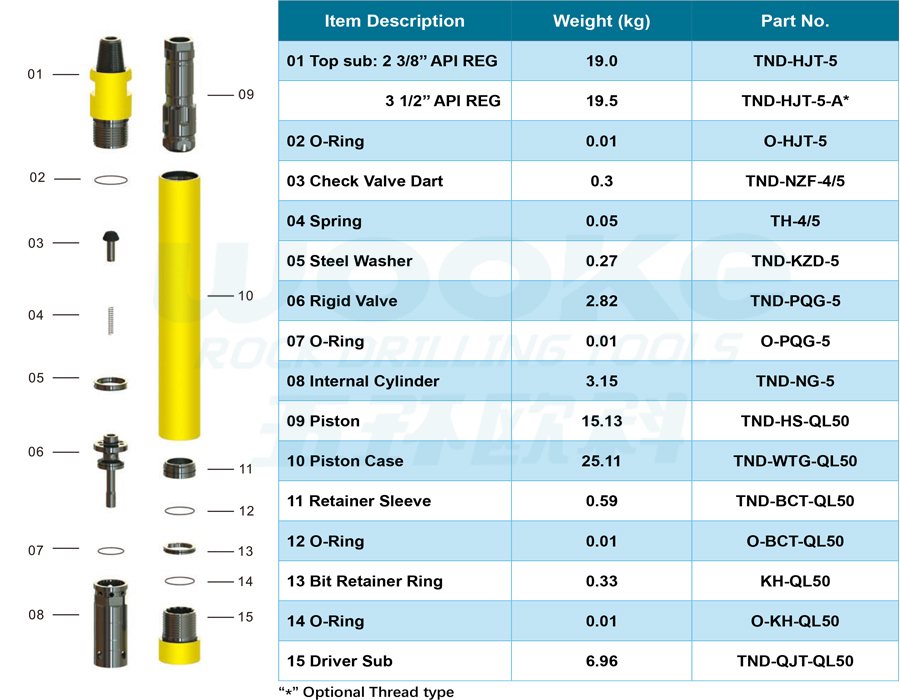

TND-QL50 DTH Hammer Part Details:

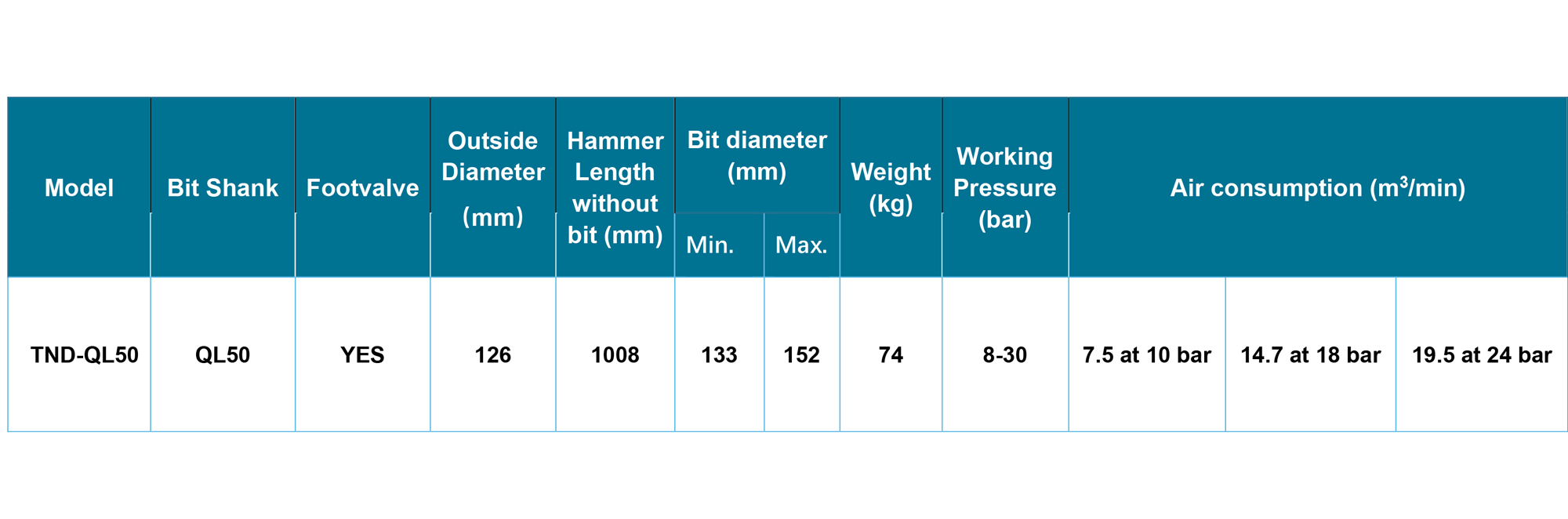

TND-QL50 DTH Hammer Overall Information:
