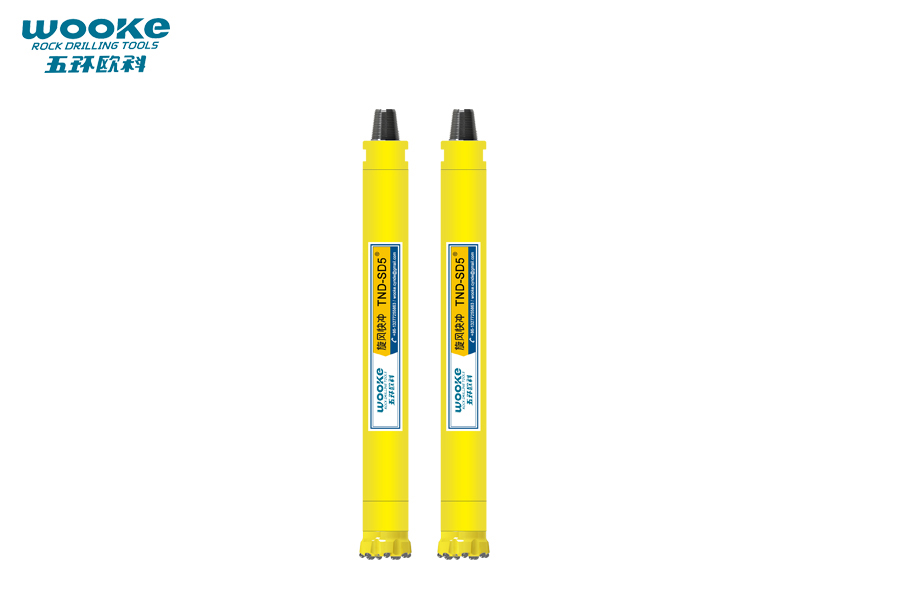

TND-SD5 DTH Hammer
- Model: TND-SD5 DTH Hammer – Compatibility SD5
- Matched Bit Shank: SD5
- Thread Connection: API 2 3/8’’ REG OR API 3 1/2’’ REG
- Hole Range: 133-152mm
- Application: Quarrying, Blasting hole drilling, Micro pilling drilling, Water well drilling, Geothermal drilling
TND-SD5 DTH Hammer Product Features:
The TND-SD5 hammer is optimized for high-efficiency drilling in soft to medium formations, offering faster penetration rates and excellent fuel efficiency. The hammer’s streamlined design ensures minimal energy loss, increasing drilling speed and reducing air consumption. It is an excellent choice for applications that require consistent performance without high maintenance demands. The TND-SD5 DTH hammer is highly durable, minimizing downtime and increasing overall productivity. For clients, this hammer leads to reduced drilling costs, faster project completion, and lower operational expenses.
All our TND Series Hammers have the following features:
TND® optimized structure design: Fewer air holes on internal cylinder, higher stiffness of air slot.
Standard API Thread.
Fine CNC machining tolerance and specifications coupled with quality assembly lead to great reliability and performance.
The piston case is made of superior alloy steel to provide the longest service life possible.
Heat-treated piston and internal cylinder guiding system is reasonably structured to achieve the highest efficiency and the largest impact power. The penetration speed is 10%-30% faster than other products of the same specification.
The multiple threads are CNC machined to achieve a higher level of accuracy, allowing ease of breakout and make-up of the Driver sub.
The Driver sub is heat-treated to maximize service life and drill bit life.
Hammer front structure design: when pulling out the hammer, the last impact of the piston would fall on the step of the piston case, ensuring the safety of the driver sub-splines and the retainer ring.
Top Sub for Customer's Choice:
↑★ Top sub with cement carbide button (Alternative).
↑★ In order to increase the working life of the piston case when drilling very abrasive rocks. The Top sub is designed to be made up of three pieces of coupling,
and only the wear-proof casing needs to be replaced timely.

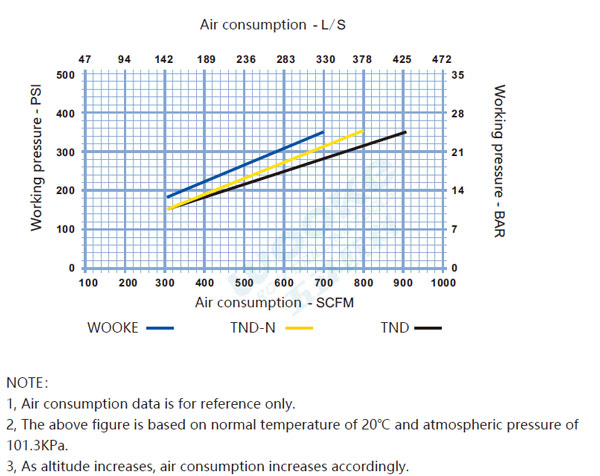

4.5''-5'' High Air Pressure Working Performance:
10~30 bar (145-428 PSI) Working Pressure
Top Sub Pin Thread: 2 3/8'' API REG & 3 1/2'' API REG

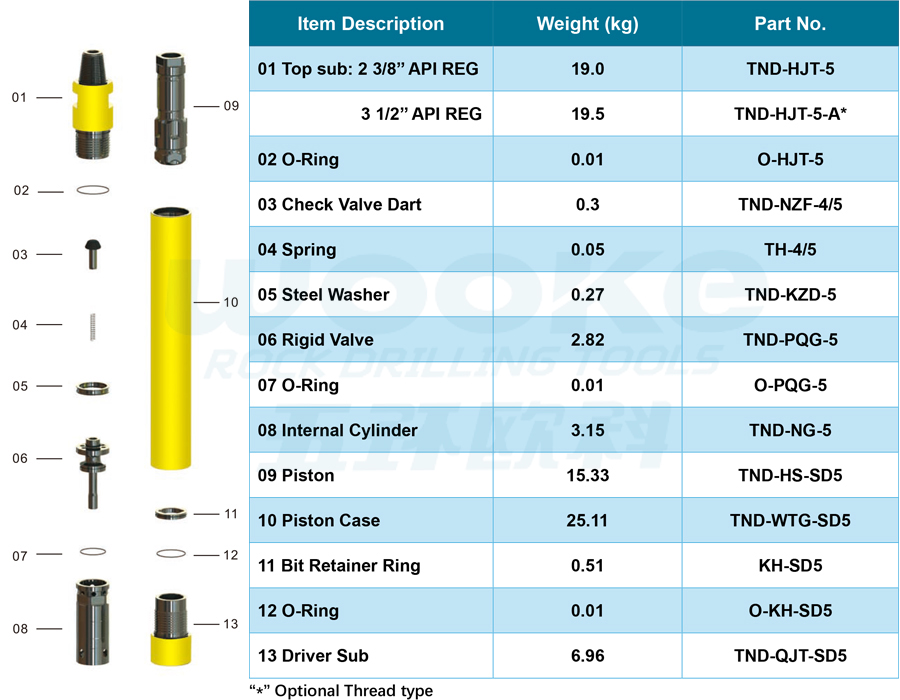

TND-SD5 DTH Hammer Part Details:

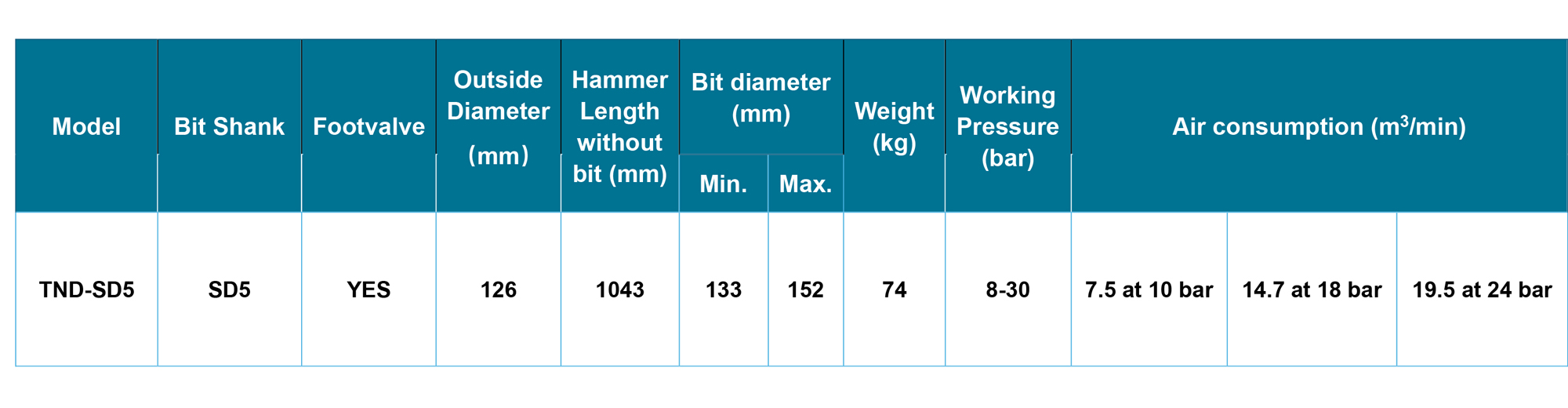

TND-SD5 DTH Hammer Overall Information:
