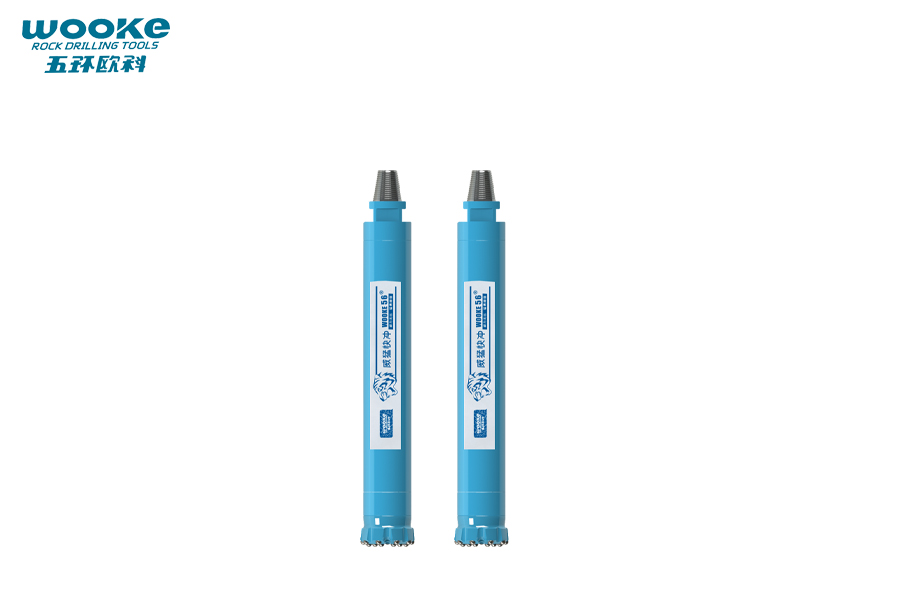

WOOKE56 DTH Hammer
- Model: WOOKE56 DTH Hammers
- Matched Bit Shank: WOOKE56
- Thread Connection: API 2 3/8’’ REG OR API 3 1/2’’ REG
- Hole Range: 140-152mm
- Application: Mining site, Construction, Blasthole drilling, Water well drilling, Geothermal drilling…etc.
WOOKE56 DTH Hammer Product Features:
Wooke56 DTH Hammer is a high-frequency hammer (patented), which is also a money-saver for the new drilling era, with outstanding features in air-saving, penetration, longevity, and reliability.
Excellent performance in both “soft” ground and “hard” formation in terms of ROP.
Let's take a look at the highlight of all our WOOKE56 DTH Hammer:
WOOKE Series DTH Hammers have the following features:

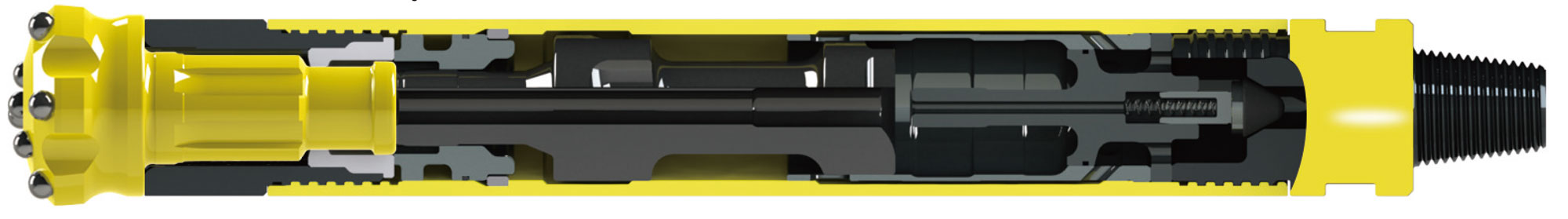

WOOKE® optimized structure design: Fewer air holes on internal cylinder, higher stiffness of air slot.
Internal parts are tightly assembled, avoiding interparticle wear, and the hammer's reliability is increased.

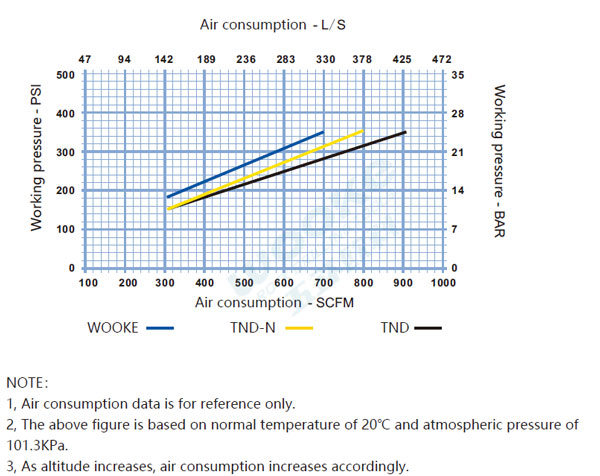

5'' DTH Hammer Working Performance Comparison between TND Series and WOOKE Series:

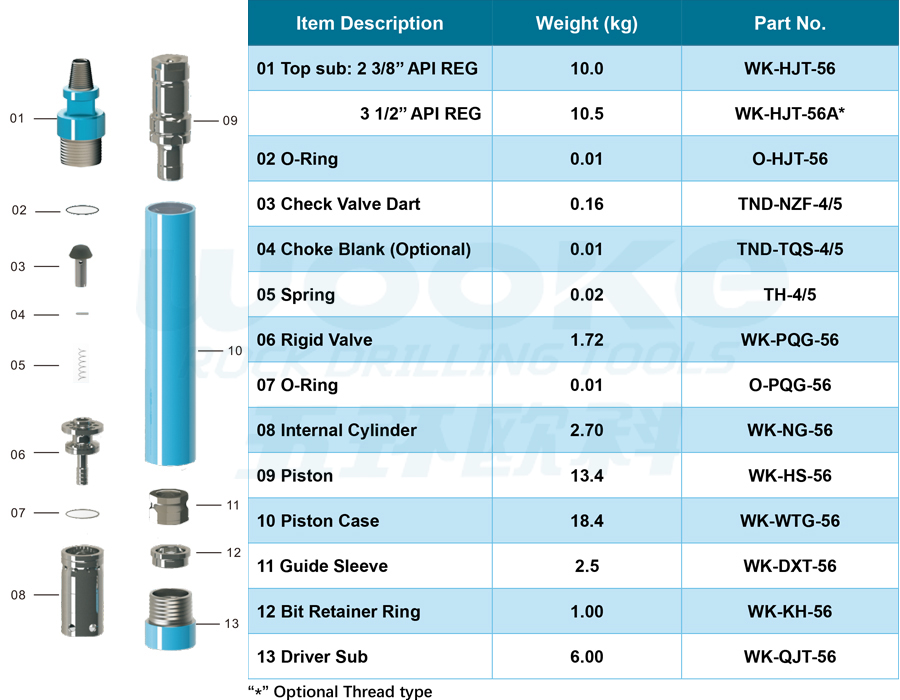

WOOKE56 DTH Hammer Part Details:

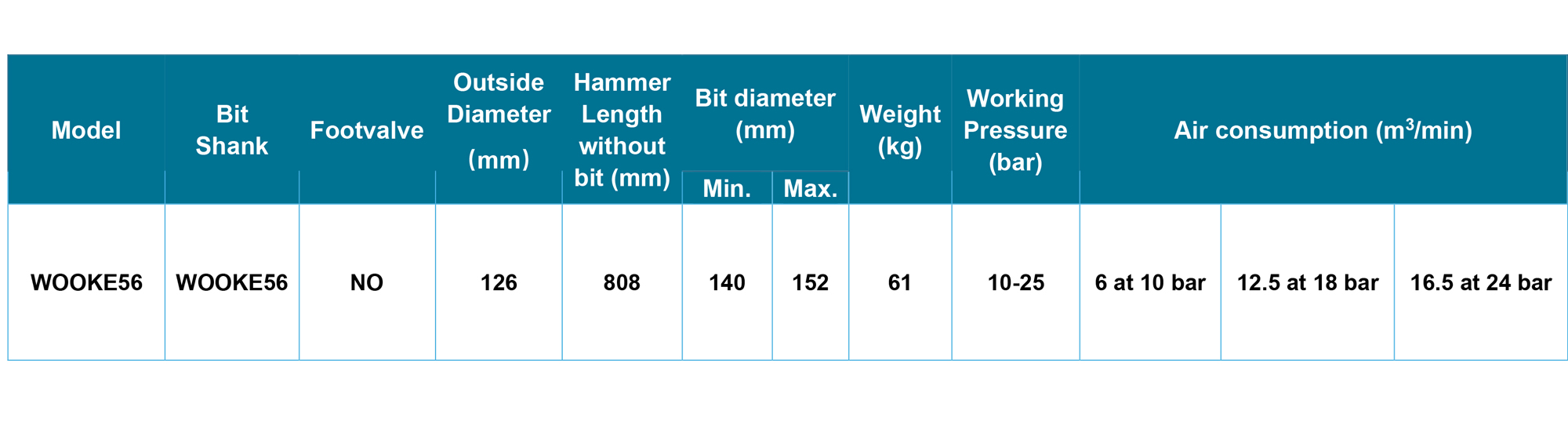

WOOKE56 DTH Hammer Overall Information:
