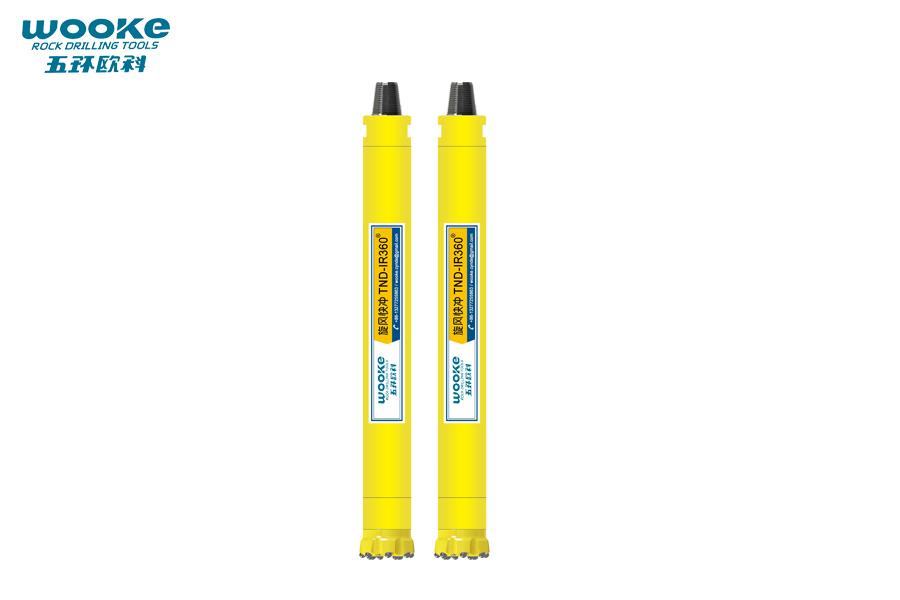

TND-IR360 DTH Hammer

TND-IR360 DTH Hammer Product Features:

The TND-IR360 DTH hammer is one of the most popular types of hammer in our factory. It is tailored for high-pressure drilling applications, combining advanced engineering with exceptional durability. Its robust design and high-quality raw material ensure minimal wear in both medium and hard rock formations, maintaining consistent performance across demanding conditions. Our IR360 DTH hammer provides faster penetration rates and improved energy transfer, enabling users to complete projects efficiently. Based on the above quality, customers will surely benefit from reduced operational costs, lower downtime, and a reliable tool that withstands tough conditions, ensuring excellent value for investment.

• Efficient Energy Transfer: Our IR360 DTH hammer is designed for optimal impact energy delivery, ensuring faster and more efficient drilling in both medium and hard rock formations.

• Proven Reliability: With a track record of durability and dependability, our IR360 DTH hammer performs exceptionally well in diverse applications, from mining to water well drilling.

• Precision Engineering: Our IR360 DTH hammers are manufactured with tight tolerances for enhanced alignment and minimized wear, ensuring extended service life.

• High penetration Rates: The IR360 DTH hammers deliver consistent performance in demanding environments, reducing drilling time and total operational costs.

All our TND Series Hammers have the following features:

1. TND® optimized structure design: Fewer air holes on internal cylinder, higher stiffness of air slot.

2. Standard API Thread.

3. Fine CNC machining tolerance and specifications coupled with quality assembly lead to great reliability and performance.

4. The piston case is made of superior alloy steel to provide the longest service life possible.

5. Heat-treated piston and internal cylinder guiding system is reasonably structured to achieve the highest efficiency and the largest impact power. The penetration speed is 10%-30% faster than other products of the same specification.

6. The multiple threads are CNC machined to achieve a higher level of accuracy, allowing ease of breakout and make-up of the Driver sub.

7. The Driver sub is heat-treated to maximize service life and drill bit life.

8. Hammer front structure design: when pulling out the hammer, the last impact of the piston would fall on the step of the piston case, ensuring the safety of the driver sub-splines and the retainer ring.

Top Sub for Customer's Choice:

↑★ Top sub with cement carbide button (Alternative).

↑★ In order to increase the working life of the piston case when drilling very abrasive rocks. The Top sub is designed to be made up of three pieces of coupling,

and only the wear-proof casing needs to be replaced timely.

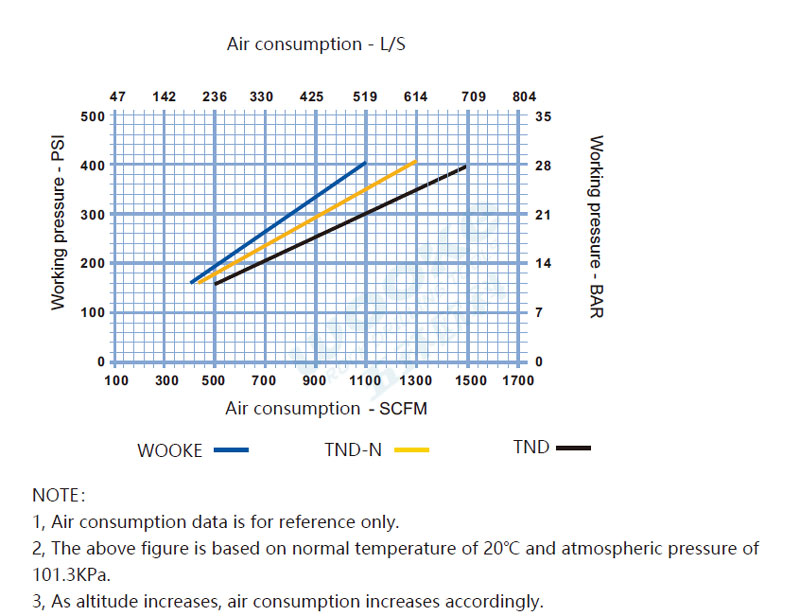

6'' High Air Pressure DTH Hammer Working Performance:

10~35 bar (145-507 PSI) Working Pressure.

Top Sub Pin Thread: 3 1/2'' API REG

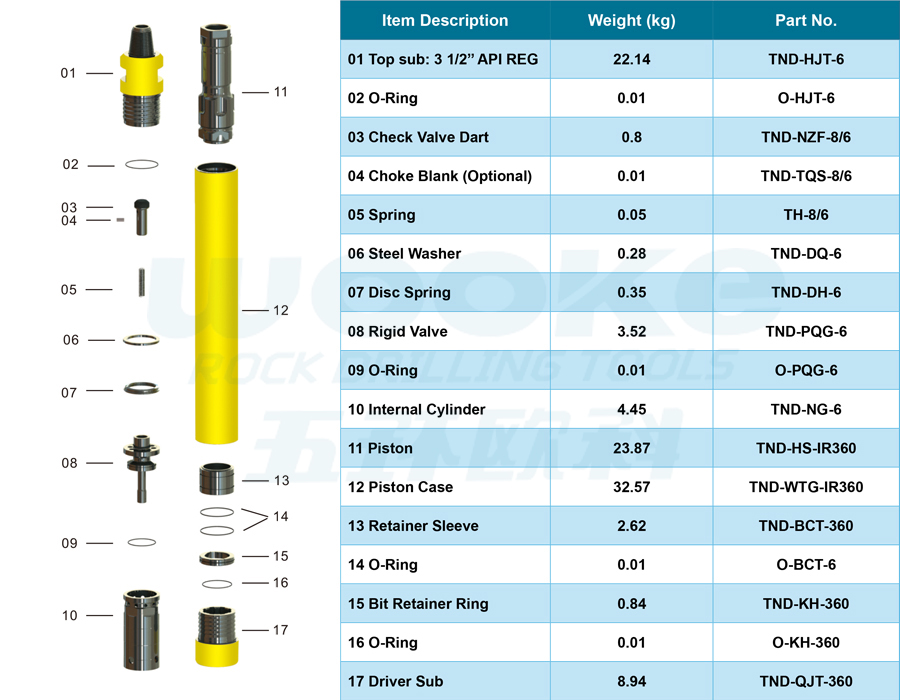

TND-IR360 DTH Hammer Part Details

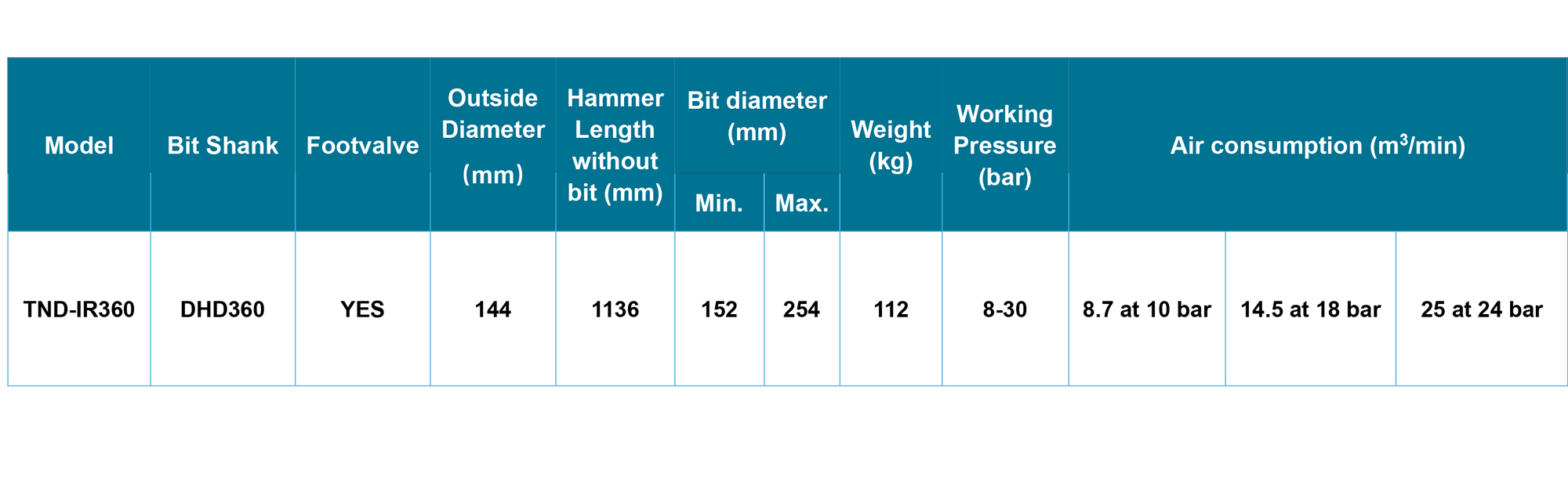

TND-IR360 DTH Hammer Overall Information:
