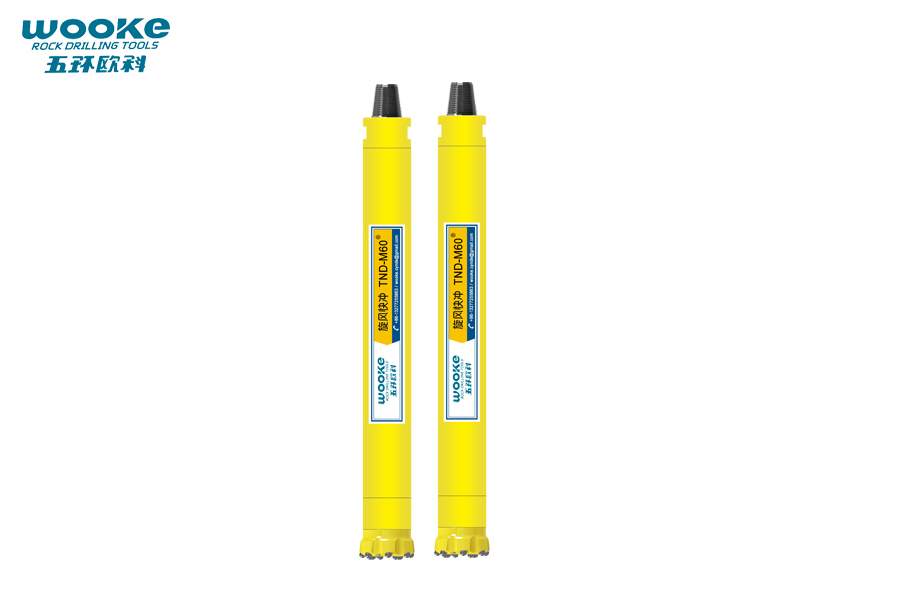

TND-M60 DTH Hammer

TND-M60 DTH Hammer Product Features

The TND-M60 DTH hammer is widely used in water well drilling, and we have exported a lot to the Brazilian market and received very good feedback. Based on the customer's specific request for drilling in the well, we have also designed the Anti-blockage Backhead Sub to match up with our TND-M60 DTH hammer. Anyway, we can customize some of the hammer parts for customers if they have specific requests.

Our regular TND-M60 DTH hammer also has the features of following:

Exceptional Impact Strength: Engineered for powerful and precise drilling, the TND-M60 DTH hammer excels in a water well drilling environment.

Extended Lifespan: Each of the TND-M60 DTH hammer's advanced heat treatment processes ensures it withstands high wear and tear, offering long-lasting performance.

Versatile Applications: In complicated water well drilling conditions, the TND-M60 DTH hammer delivers consistent results across diverse drilling scenarios.

Operational Efficiency: The TND-M60 DTH hammer with optimized for smooth drilling operations, reducing energy waste and operational costs.

All our TND Series Hammers have the features as following:

1. TND® optimized structure design: Fewer air holes on internal cylinder, higher stiffness of air slot.

2. Standard API Thread.

3. Fine CNC machining tolerance and specifications coupled with quality assembly lead to great reliability and performance.

4. The piston case is made of superior alloy steel to provide the longest service life possible.

5. Heat-treated piston and internal cylinder guiding system is reasonably structured to achieve the highest efficiency and the largest impact power. The penetration speed is 10%-30% faster than other products of the same specification.

6. The multiple threads are CNC machined to achieve a higher level of accuracy, allowing ease of breakout and make-up of the Driver sub.

7. The Driver sub is heat-treated to maximize service life and drill bit life.

8. Hammer front structure design: when pulling out the hammer, the last impact of the piston would fall on the step of the piston case, ensuring the safety of the driver sub-splines and the retainer ring.

Top Sub for Customer's Choice:

↑★ Top sub with cement carbide button (Alternative).

↑★ In order to increase the working life of the piston case when drilling very abrasive rocks. The Top sub is designed to be made up of three pieces ofcoupling,

and only the wear-proof casing needs to be replaced timely.

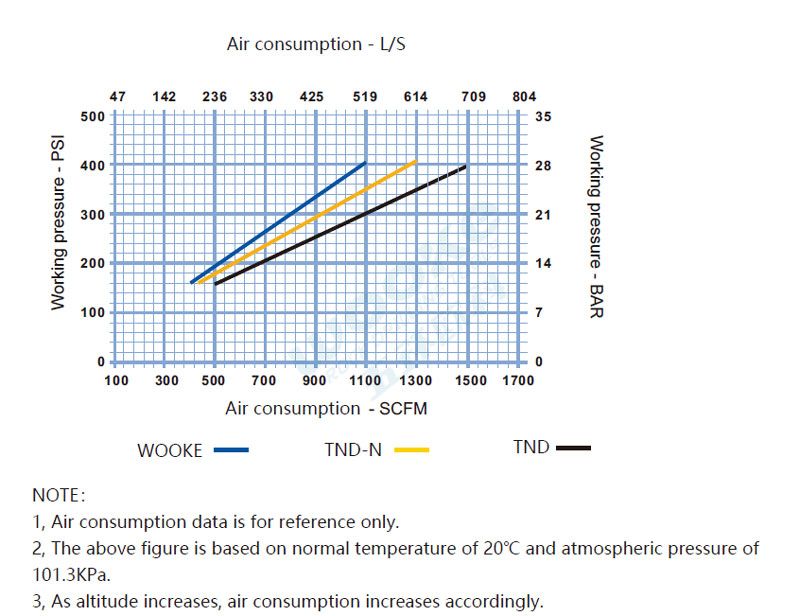

6'' High Air Pressure DTH Hammer Working Performance:

10~35 bar (145-507 PSI) Working Pressure

Top Sub Pin Thread: 3 1/2'' API REG

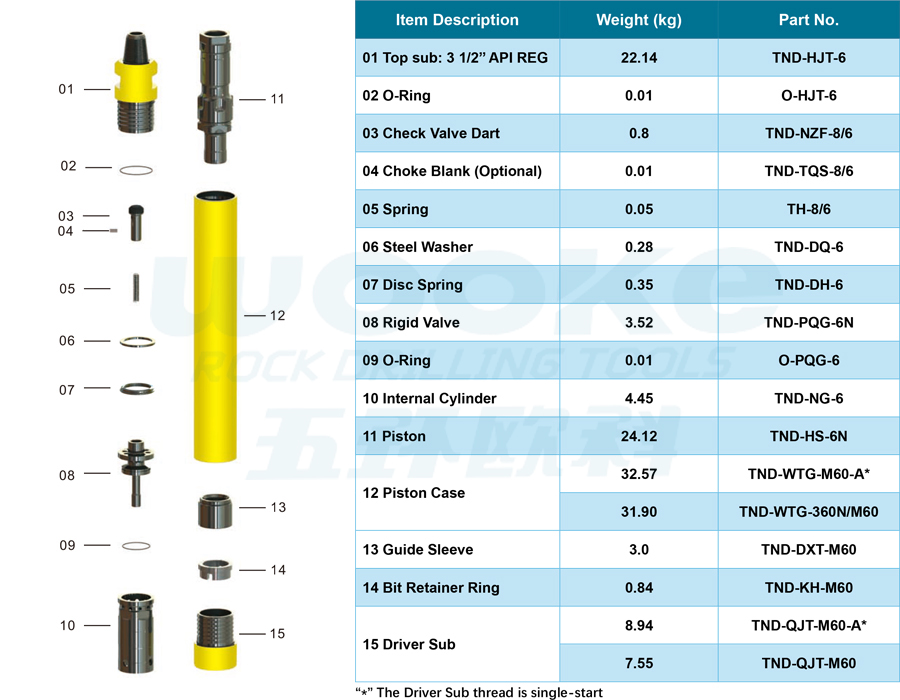

TND-M60 DTH Hammer Part Details:

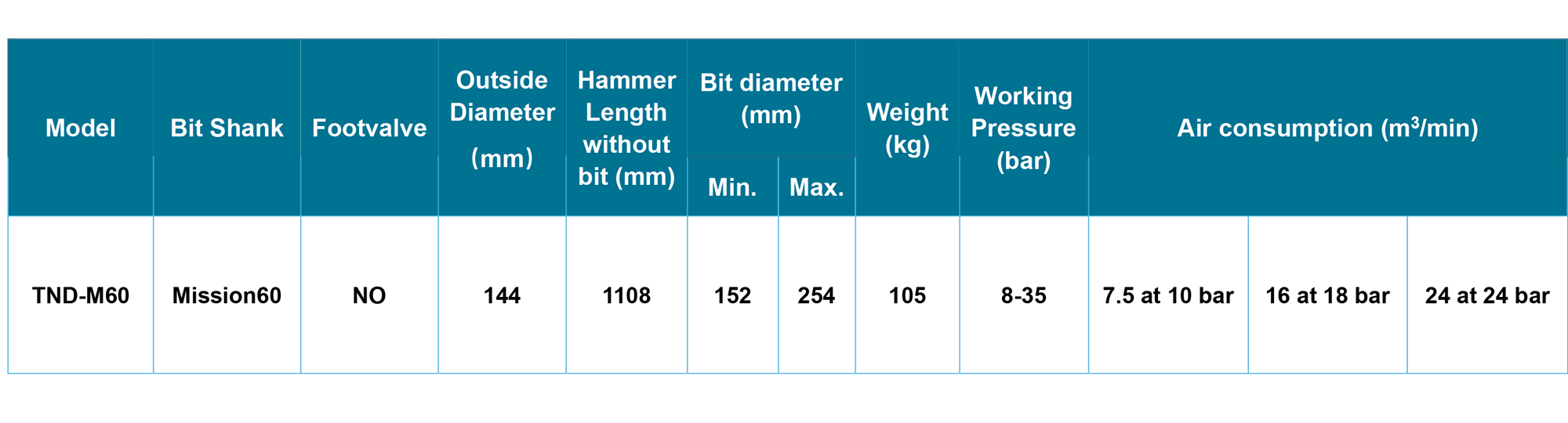

TND-M60 DTH Hammer Overall Information:
