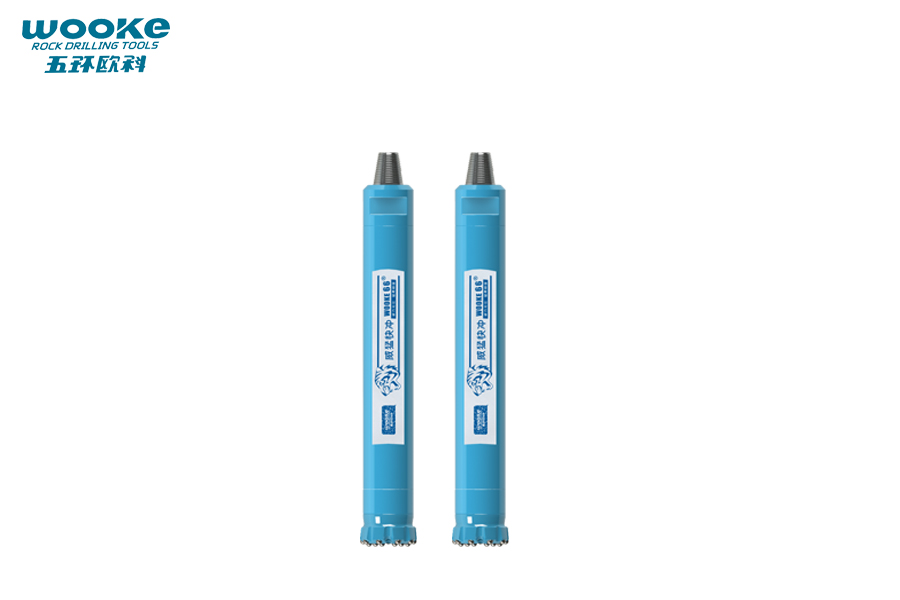

WOOKE66 DTH Hammer
- Model: WOOKE66 DTH Hammer
- Matched Bit Shank: WOOKE66
- Thread Connection: API 3 1/2’’ REG
- Hole Range: 159-178mm
- Application: Mining site, Construction, Blasthole drilling, Water well drilling, Geothermal drilling…etc.
WOOKE66 DTH Hammer Product Features:
Heavy-Duty Performance: WOOKE66 DTH Hammer is designed with a 12-spline shank and it's optimized for deep and large-diameter drilling.
Efficient Airflow: WOOKE66 DTH Hammer's consistent air pressure throughout the drilling process boosts productivity.
Extended Lifespan: With special heat treatment for the driver sub and the piston case, WOOKE66 DTH Hammer excels in high-wear environments, ensuring long-term reliability.
Eco-Friendly: It is proven by our customers that our WOOKE66 DTH Hammer has low air consumption and high fuel efficiency, reducing the carbon footprint.
WOOKE Series DTH Hammers have the following features:
Piston case: Using superior alloy steel, it offers even better reliability and longer life after treatment.
Hardened piston after heat treatment, Optimized orienting system between piston and internal cylinder helps to achieve the best impact efficiency and power output. Penetration rate is 20%-30% faster than products of the same spec. supplied by competitors.

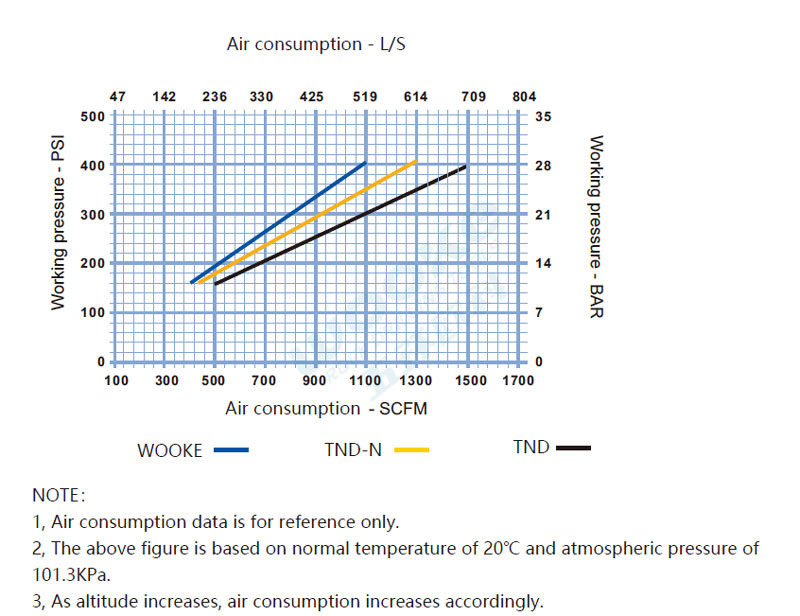

6'' DTH Hammer Working Performance Comparison between TND Series and WOOKE Series:

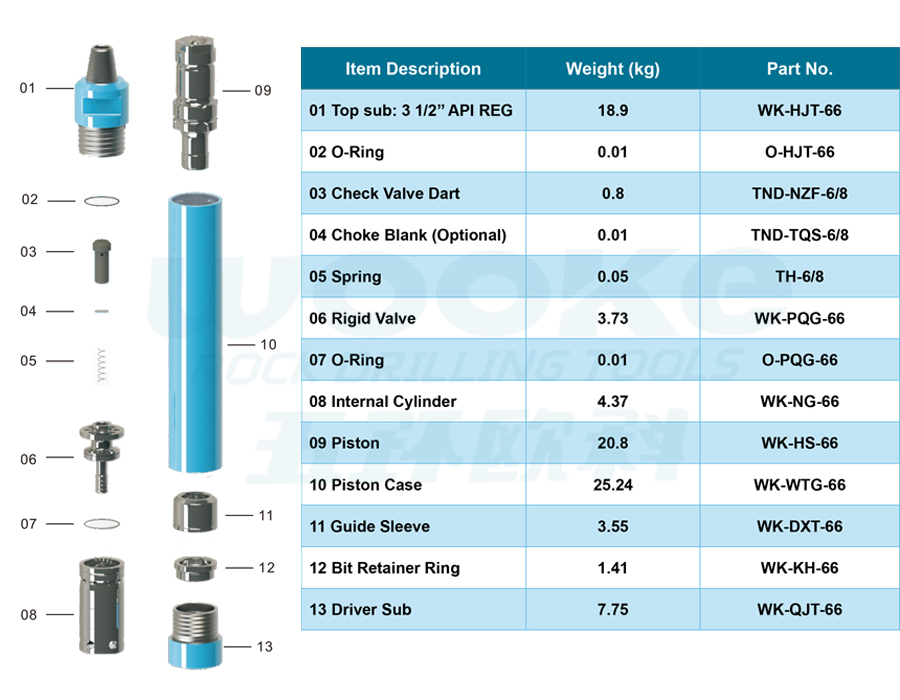

WOOKE86 DTH Hammer Part Details:

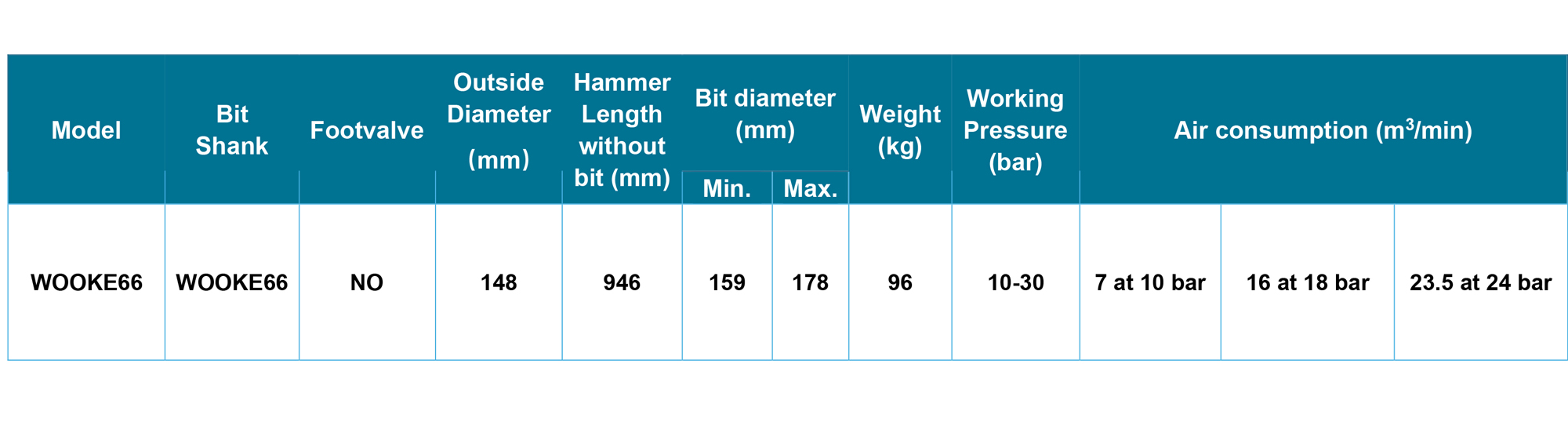

WOOKE66 DTH Hammer Overall Information:
