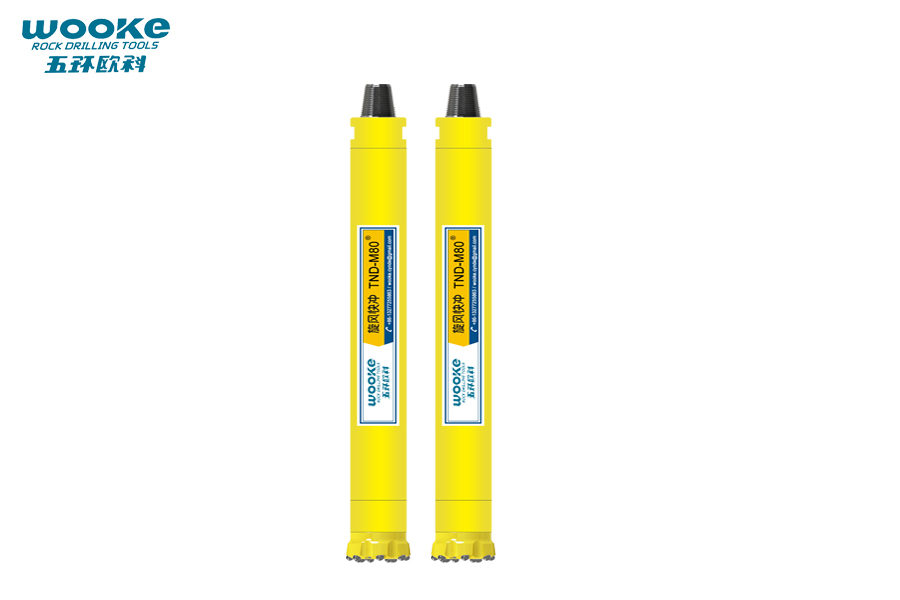

TND-M80 DTH hammer
- Model: TND-M80 DTH Hammer - Compatibility Mission80
- Matched Bit Shank: Mission80
- Thread Connection: API 4 1/2’’ REG & 4 1/2''BECO
- Hole Range: 194-305mm
- Application: Mining site, Construction, Blasthole drilling, Water well drilling, Geothermal drilling…etc.
TND-M80 DTH HAMMER FEATURES:
Built for extreme conditions, the TND-M80 DTH hammer delivers unmatched drilling power and precision. Its advanced energy transfer system ensures fast penetration rates, even in the hardest formations, while its durable design withstands heavy-duty use. This hammer reduces wear and downtime, allowing users to complete projects on schedule and within budget. For clients, the TND-M80 DTH hammer guarantees reliability, enhanced productivity, and significant cost savings.
All our TND Series Hammers have the following features:
TND® optimized structure design: Fewer air holes on internal cylinder, higher stiffness of air slot.
Standard API Thread.
Fine CNC machining tolerance and specifications coupled with quality assembly lead to great reliability and performance.
The piston case is made of superior alloy steel to provide the longest service life possible.
Heat-treated piston and internal cylinder guiding system is reasonably structured to achieve the highest efficiency and the largest impact power. The penetration speed is 10%-30% faster than other products of the same specification.
The multiple threads are CNC machined to achieve a higher level of accuracy, allowing ease of breakout and make-up of the Driver sub.
The Driver sub is heat-treated to maximize service life and maximize drill bit life.
Hammer front structure design: when pulling out the hammer, the last impact of the piston would fall on the step of the piston case, ensuring the safety of the driver sub-splines and the retainer ring.
Top Sub for Customer's Choice:
↑★ Top sub with cement carbide button (Alternative).
↑★ In order to increase the working life of the piston case when drilling very abrasive rocks. The Top sub is designed to be made up of three pieces of coupling,
and only the wear-proof casing needs to be replaced timely.

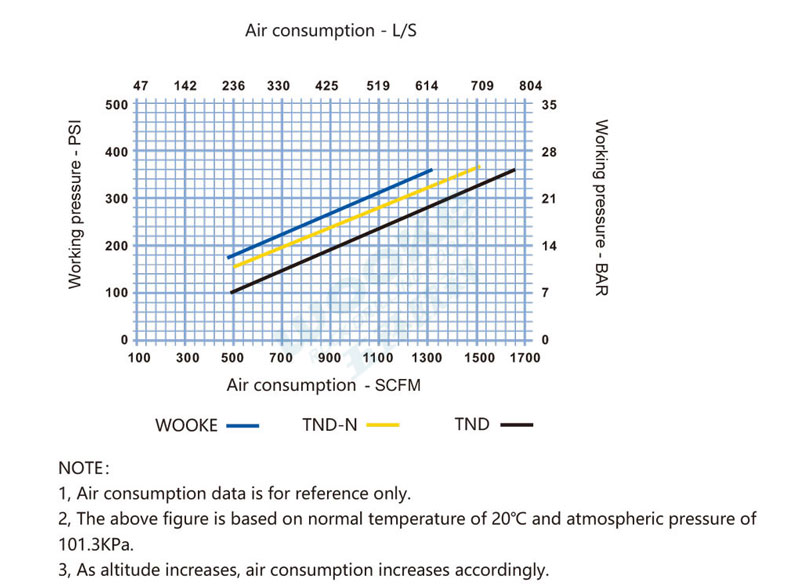

7''-8'' High Air Pressure DTH Hammer Working Performance:
10~35 Bar (145-507 PSI) Working Pressure
Top sub Pin Thread: 4 1/2'' API REG / 4 1/2'' BECO

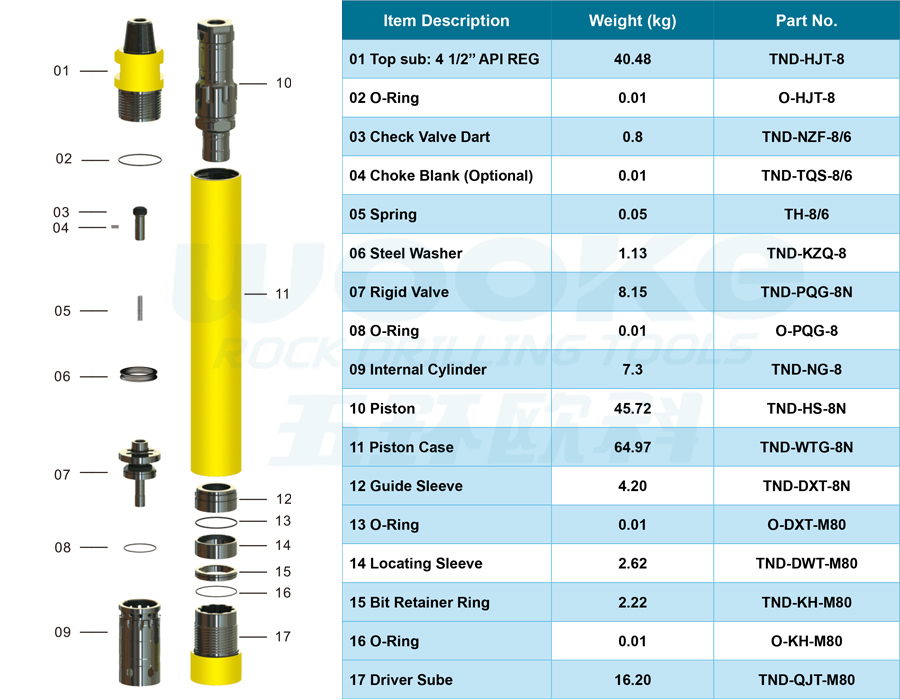

TND-M80 DTH Hammer Part Details:

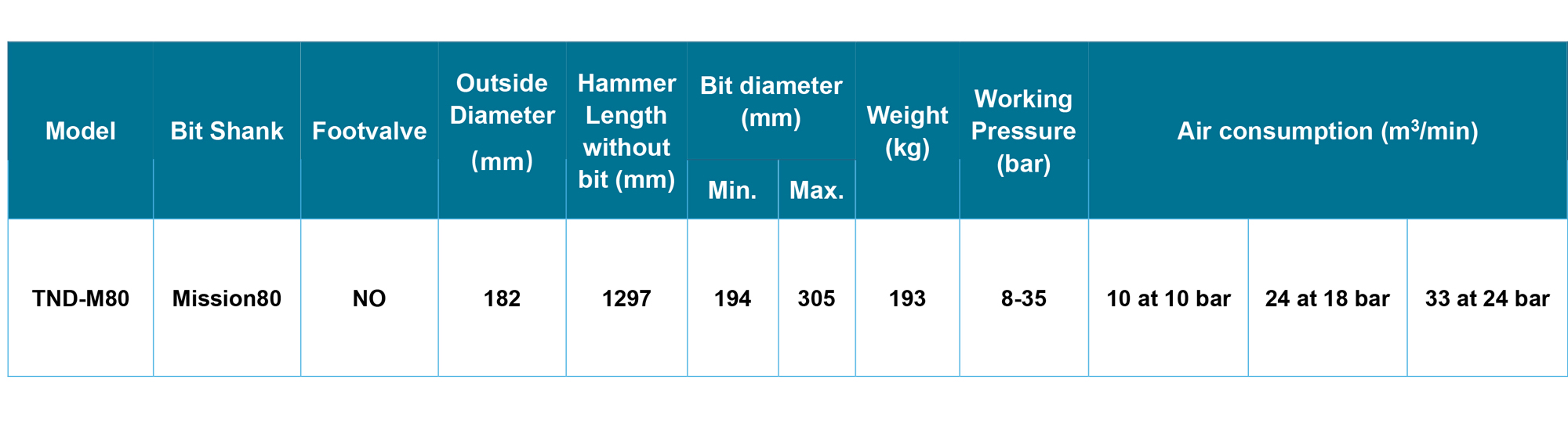

TND-M80 DTH Hammer Overall Information:
