Welcome to Wooke Rock Drilling Tools Co., Ltd

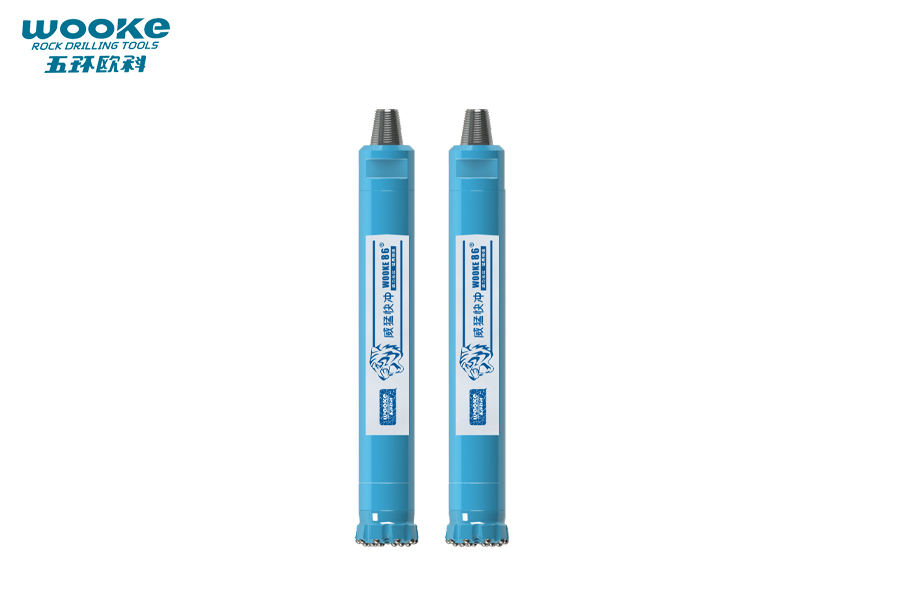

WOOKE86 DTH Hammer
- Model: WOOKE86 DTH Hammer
- Matched Bit Shank: WOOKE86
- Thread Connection: API 4 1/2’’ REG
- Hole Range: 203-245mm
- Application: Mining site, Construction, Blasthole drilling, Water well drilling, Geothermal drilling…etc.
WOOKE86 DTH Hammer Product Features:
Wooke86 high-frequency DTH hammer (patented) is the money-saver for the new drilling era, with outstanding features in air-saving, penetration, longevity, and reliability. Excellent performance in both “soft” ground and “hard” formation in terms of ROP.
It is testified by customers after thousands of tests. Below is the WOOKE86 DTH Hammer:
Cost saving: Proved 1-2 more holes/shift.
Fuel Saving: Higher air pressure, held under the same air supplied, results in less air consumption.
Air pressure holding: Constant air is maintained during the entire drilling life
Longevity: Generally, 4,000-15,000 meters, depending on soft or hard ground.

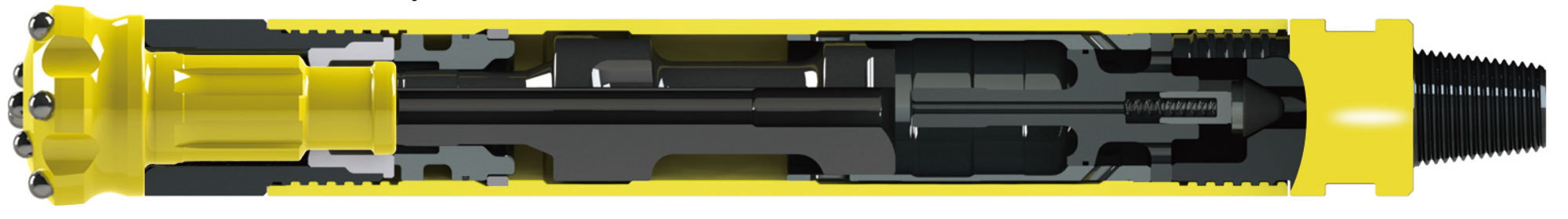

WOOKE Series DTH Hammers have the following features:
Reliable bit retainer system, bit won't drop and rupture in complex geological conditions. Driver sub is heat-treated to achieve better abrasiveness and longer life.
The two-start thread driver sub is easier to remove and install.
Short and thick shank, for better energy transmission and less strain and stress during impacting. Working efficiency improved, and the cost-in-use reduced.

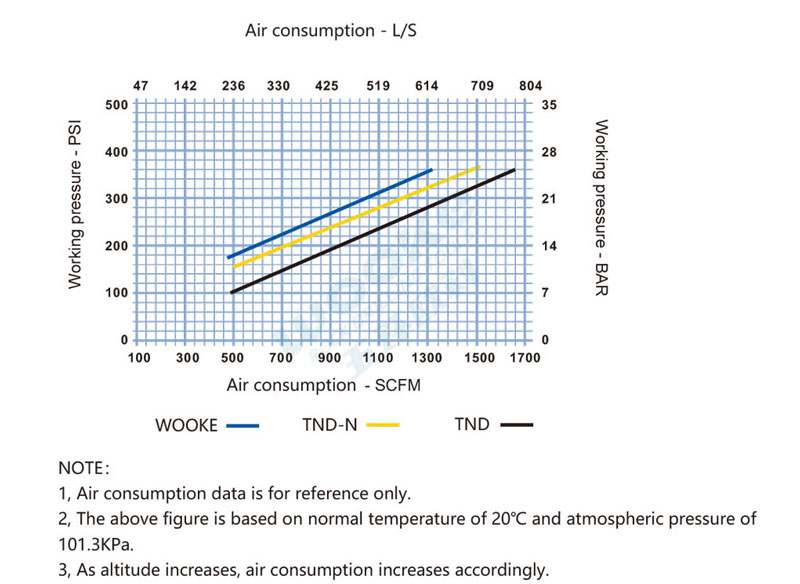

8'' DTH Hammer Working Performance Comparison between our TND Series and WOOKE Series:

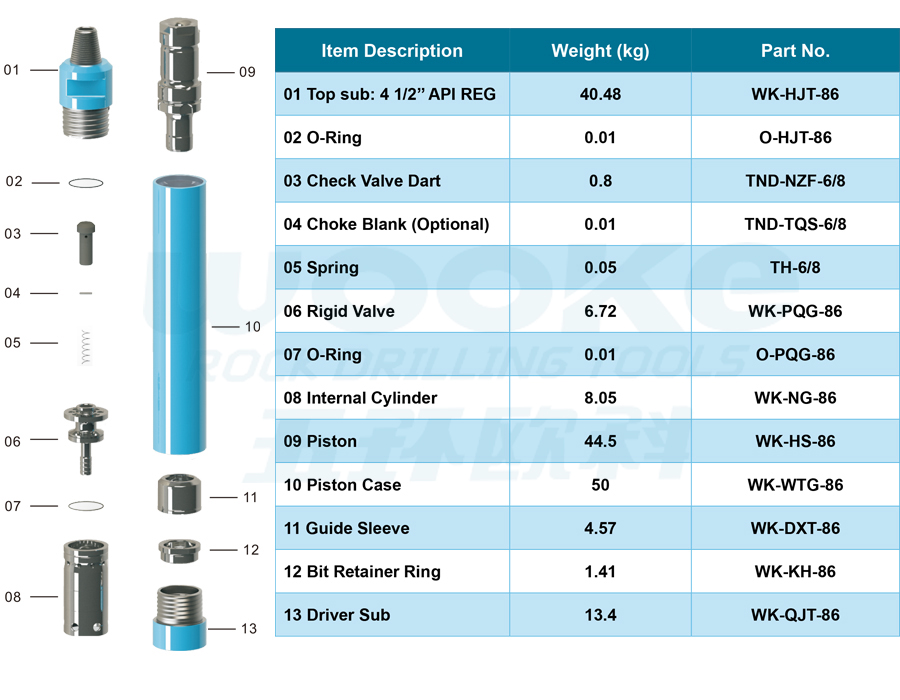

WOOKE86 DTH Hammer Part Details:

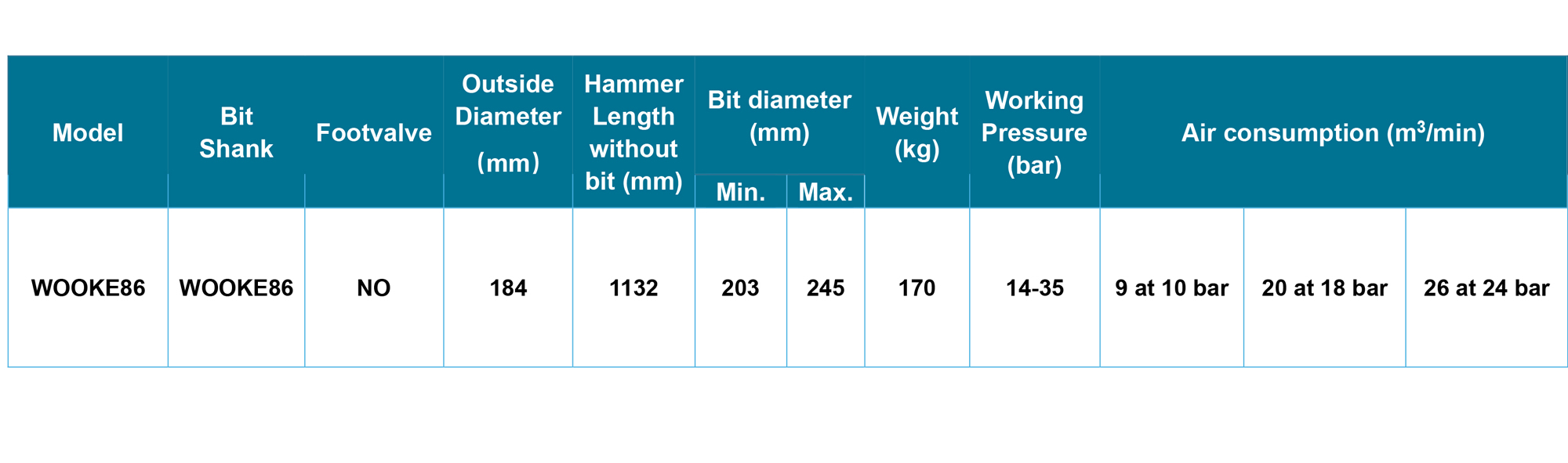

WOOKE86 DTH Hammer Overall Information:
