Symmetric Casing Systems

Symmetric Casing Systems – Introduction

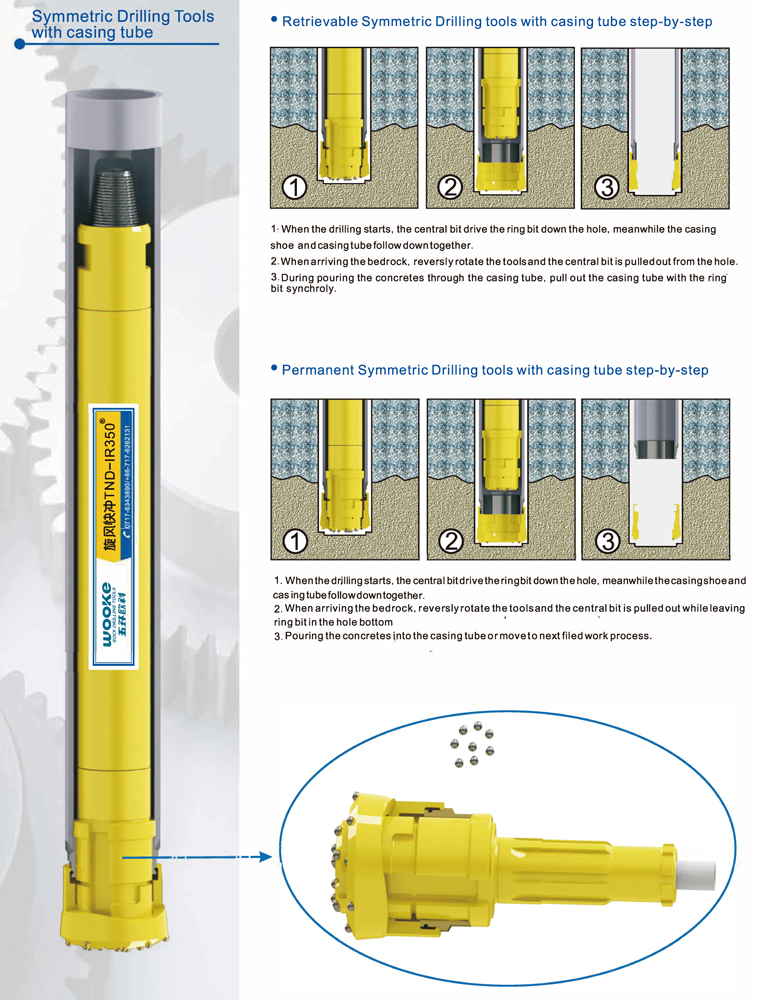

The WOOKE Symmetric Casing System is an advanced overburden drilling method designed for fast and efficient casing advancement in challenging ground conditions such as boulders, gravel, loose soil, and collapsing formations. The system features a unique three-part concentric design that enables simultaneous drilling and casing, ensuring the casing stays perfectly aligned with the borehole.

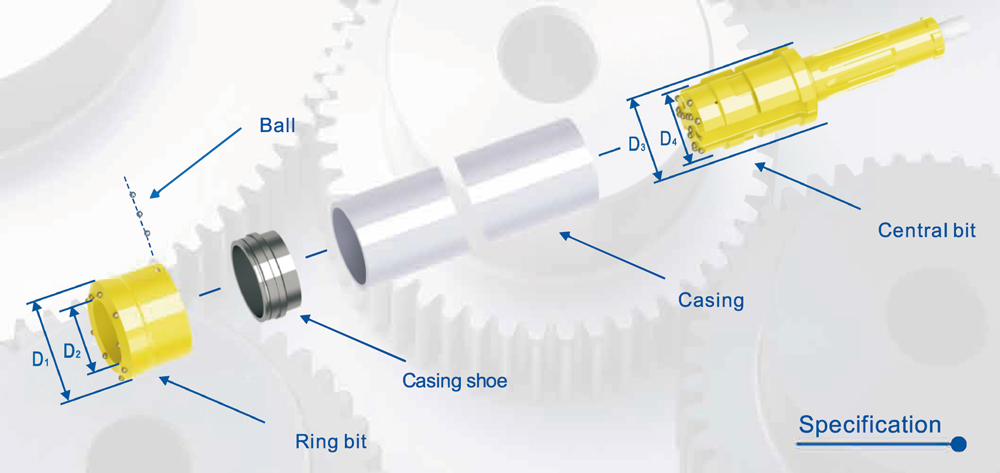

System Components

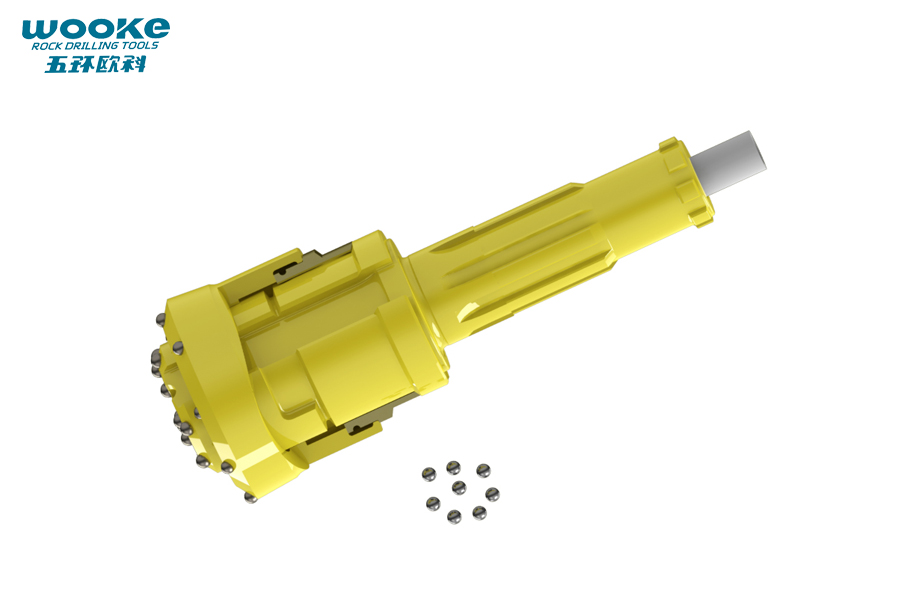

1. Central Bit – A central bit that guides the drilling direction and performs the initial cutting.

2. Ring Bit – Surrounds the pilot bit and drives the casing forward into the formation.

3. Casing Shoe – Welded to the end of the casing and connects with the ring bit to achieve simultaneous casing advancement.

Key Advantages

• Precise Borehole Alignment – The concentric design minimizes deviation, resulting in a straight and accurate borehole.

• Simultaneous Drilling and Casing – No need for step-by-step operations, greatly improving drilling efficiency.

• Ideal for Complex Ground Conditions – Excellent performance in overburden, loose, or collapsing formations.

• Retrievable Pilot Bit – The pilot bit can be retrieved after reaching the desired depth, reducing operational costs.

Typical Applications

• Foundation and ground improvement projects

• Geothermal drilling

• Urban infrastructure (e.g., subways, tunnels)

• Piling and casing installation in unstable formations

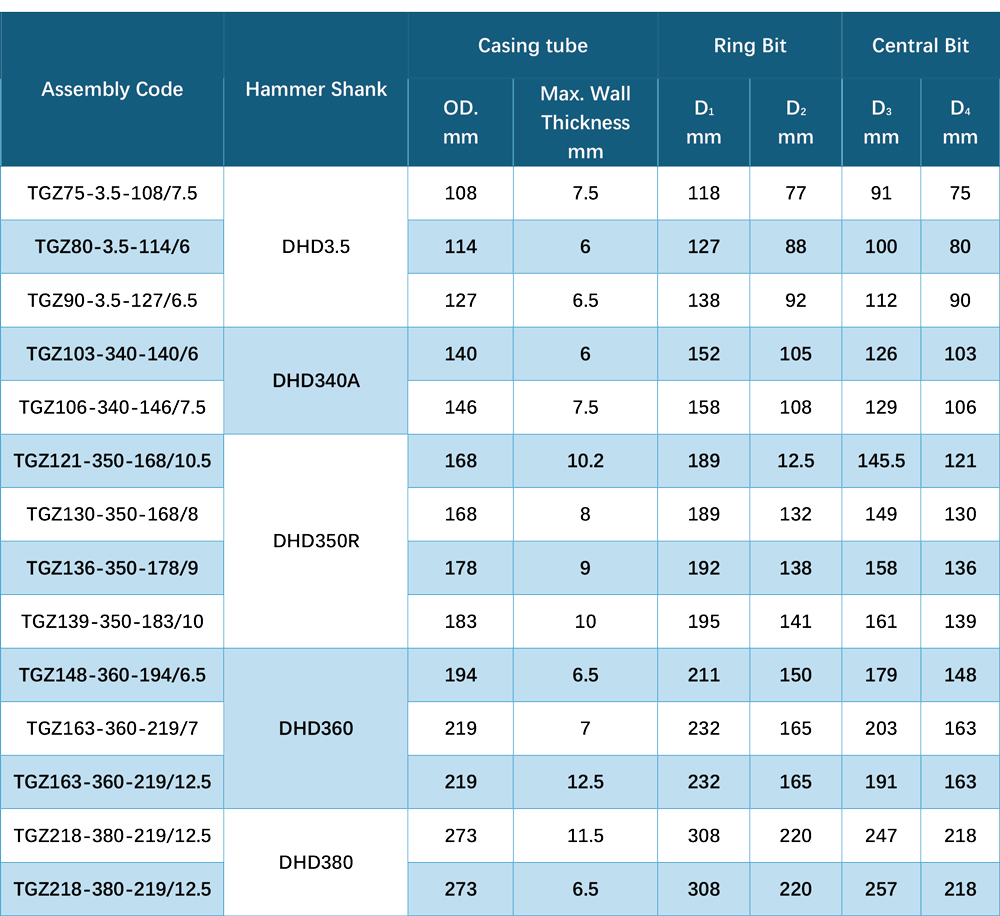

Symmetric Casing Systems Specifications:
