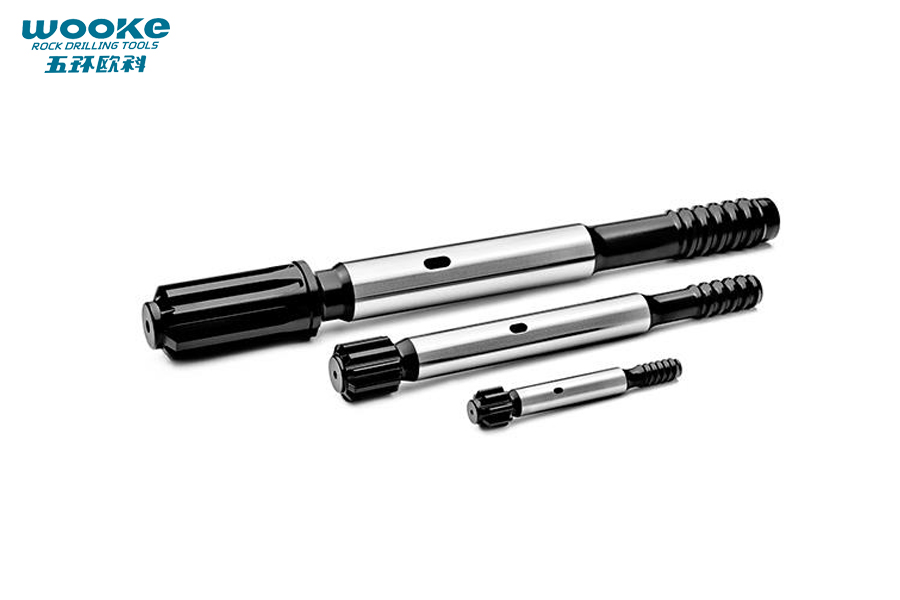

Shank Adapters
- Thread type: R25, R28, R32, R35, R38, T38, T45, T51, etc.
- Diameter: 32mm-70mm
- Length: 273mm-885mm
- Applicable rock drill brand: Atlas Copco, Tamrock, Ingersoll Rand, Boart Longyear, Furukawa, Montabert, Soonsan, Everdigm, etc
SHANK ADAPTER PRODUCT FEATURES:
The WOOKE shank adapter serves as a critical connection component between drilling rigs and tool strings. It is classified into two primary types: guide-type pneumatic rock drill tails and hydraulic rock drill adapters. Currently, over 200 models of pneumatic and hydraulic rock drills require precisely matched shank adapters.
Key Functions & Selection Criteria:
Energy Transmission: Efficiently transfers impact energy from the drill to the tool string.
System Stability: Ensures secure coupling under high-stress drilling conditions.
Model-Specific Design: Each drill type (pneumatic/hydraulic) demands a structurally compatible adapter to prevent energy loss, thread failure, or tool detachment.

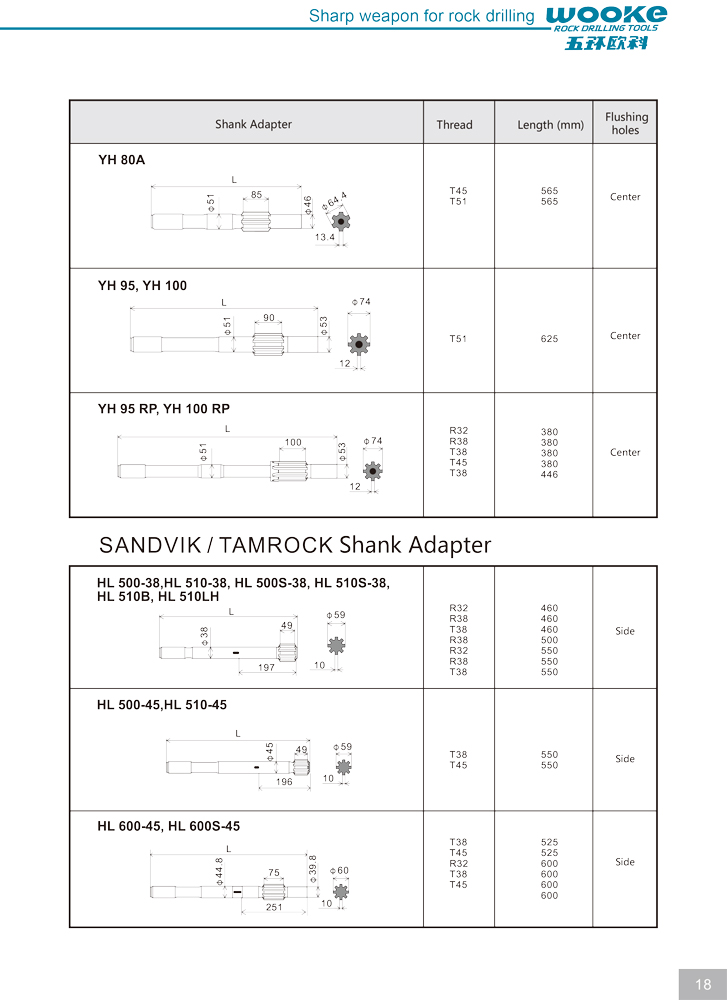

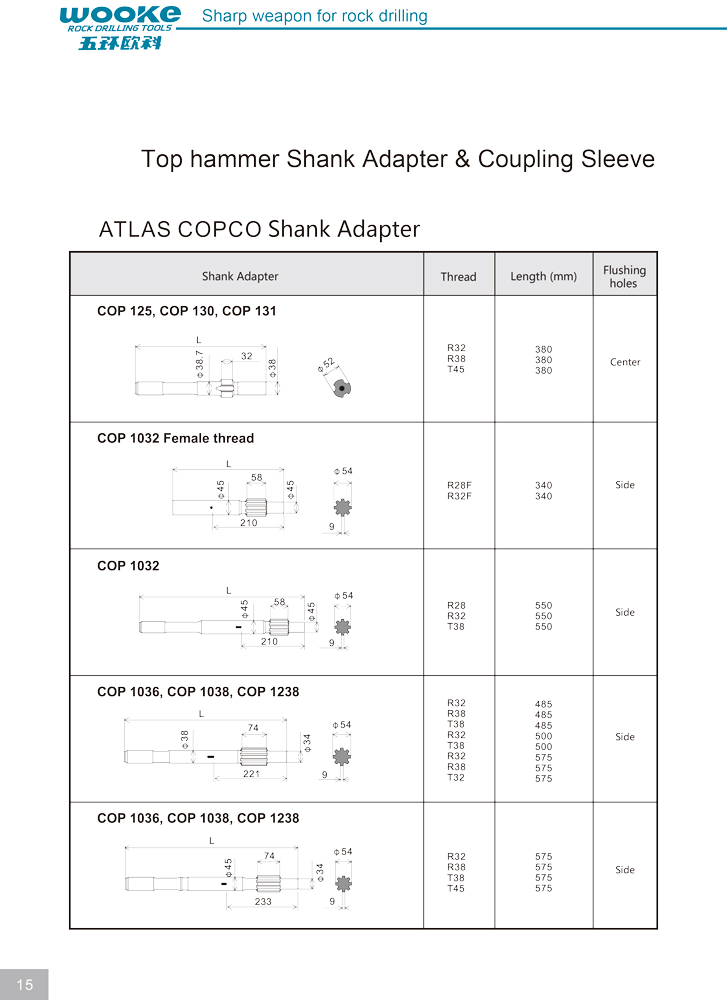

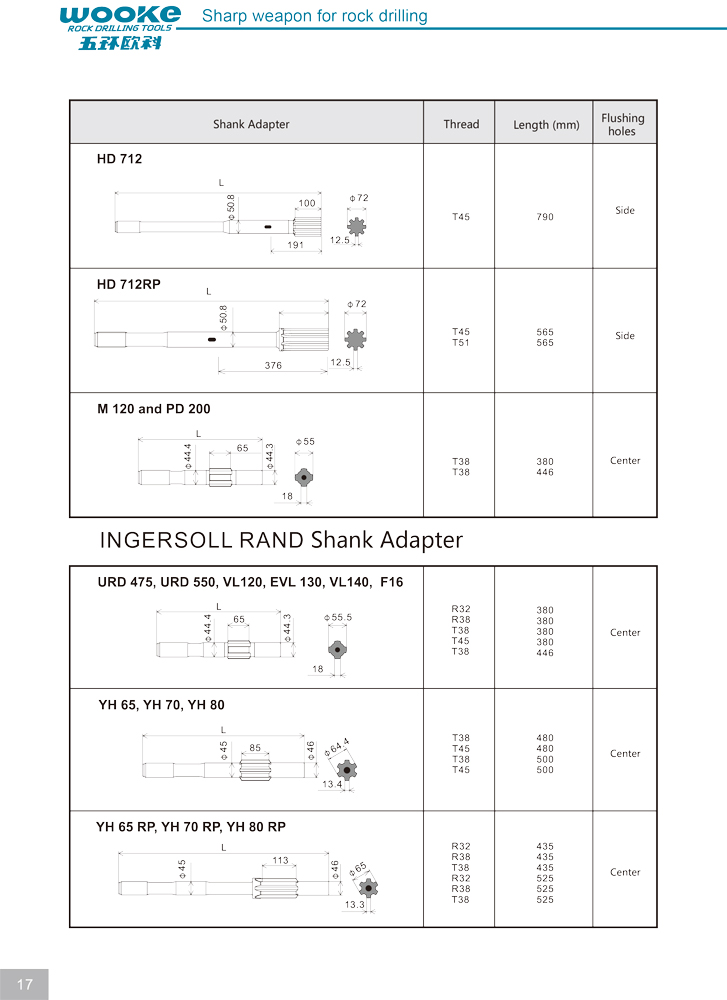

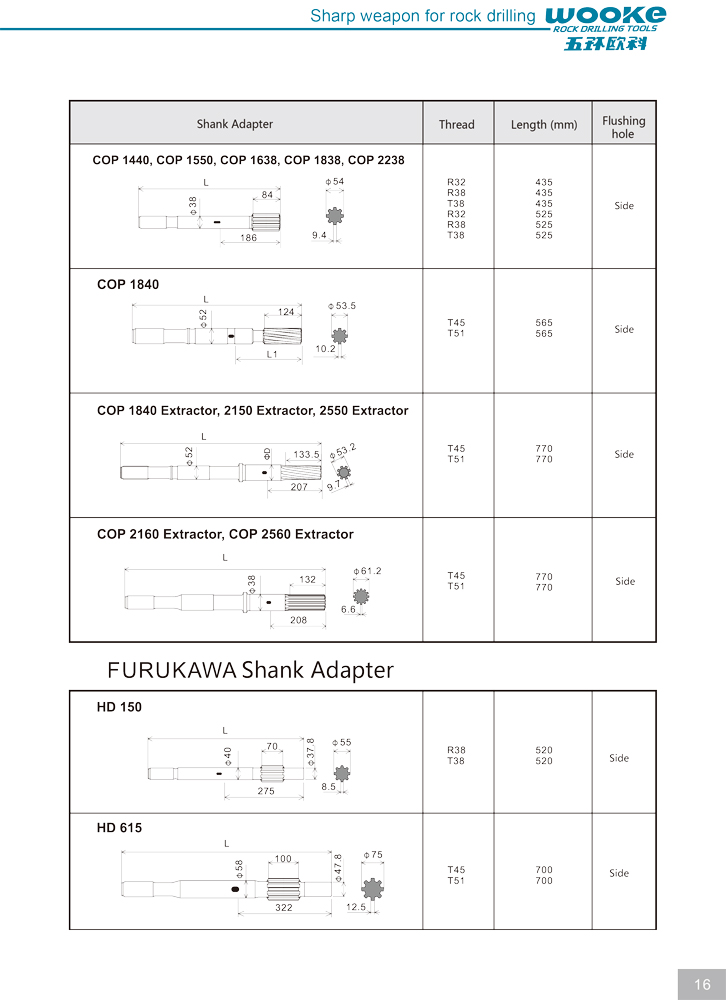

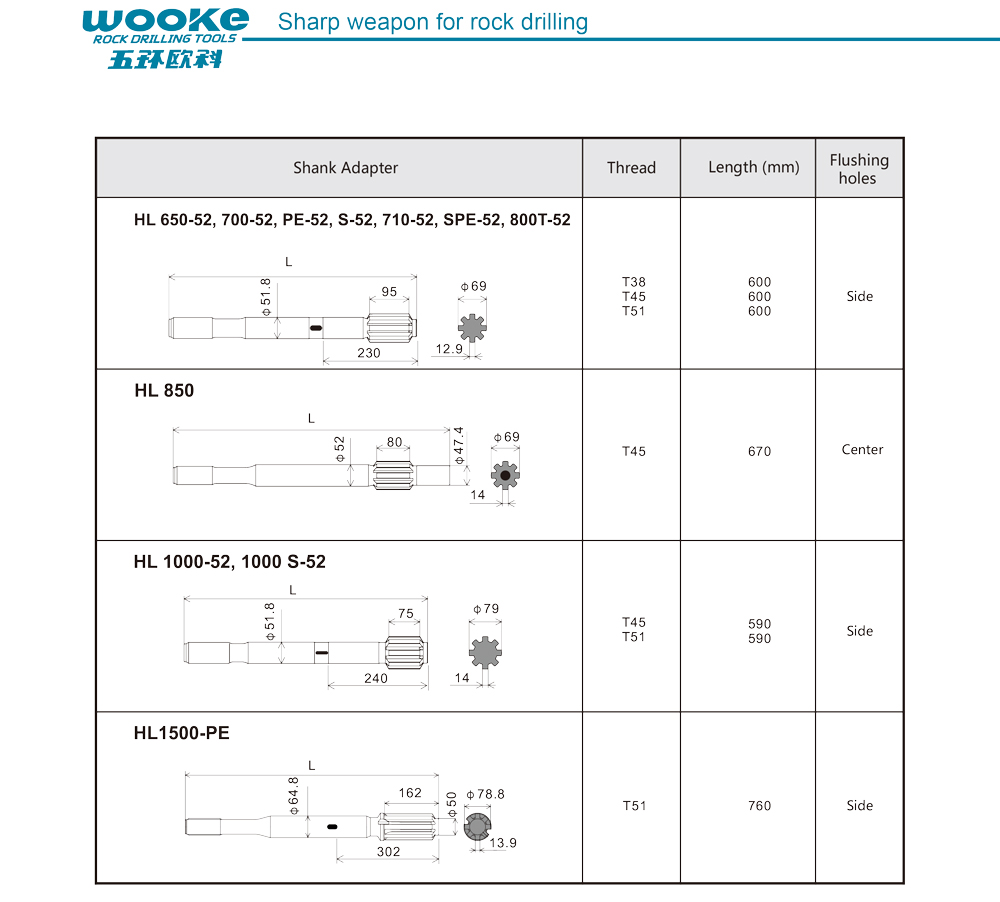

Shank Adapter Product Specifications:
